Some fun with the plasma cutter this morning. First I made a template for the side plates for my front spring hangers. That way they all come out the same plus if I ever want to make more it is easy
First picture.

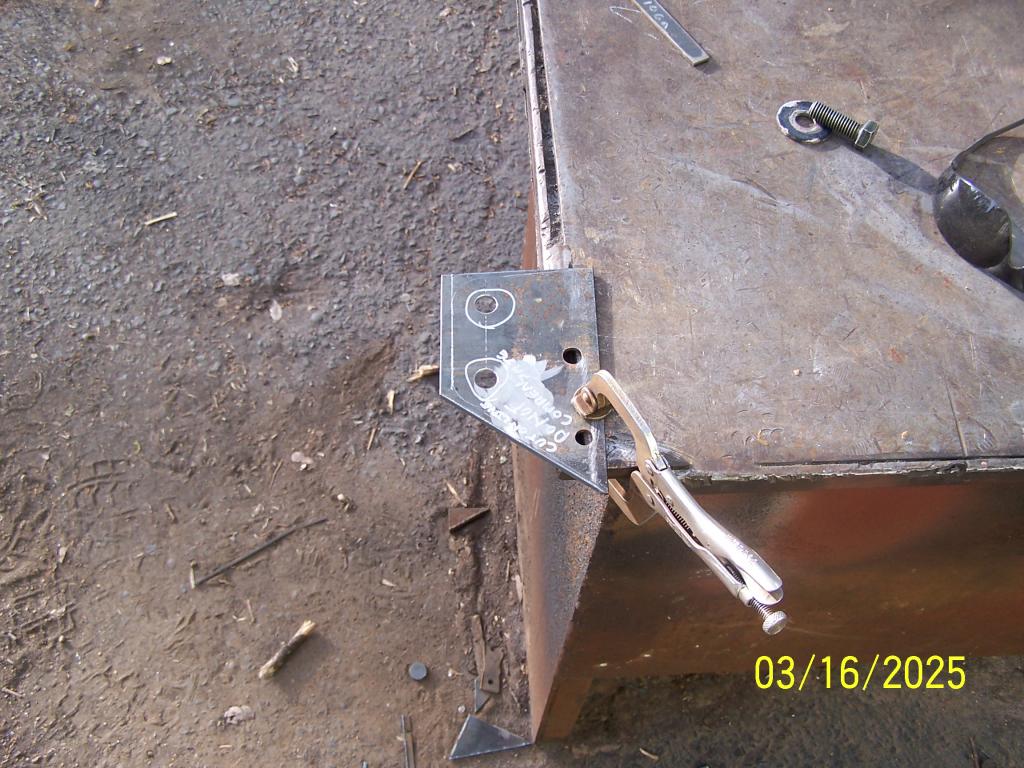

I started with a piece of 10 gauge plate that just happened to be the right length. I measured down 2.75" and scribed a line across the plate then measured in 1" and 3" and center punched the spots where the lines crossed. I then drilled a 1/8" pilot hole next I drilled them out to 1/2" with a step drill.

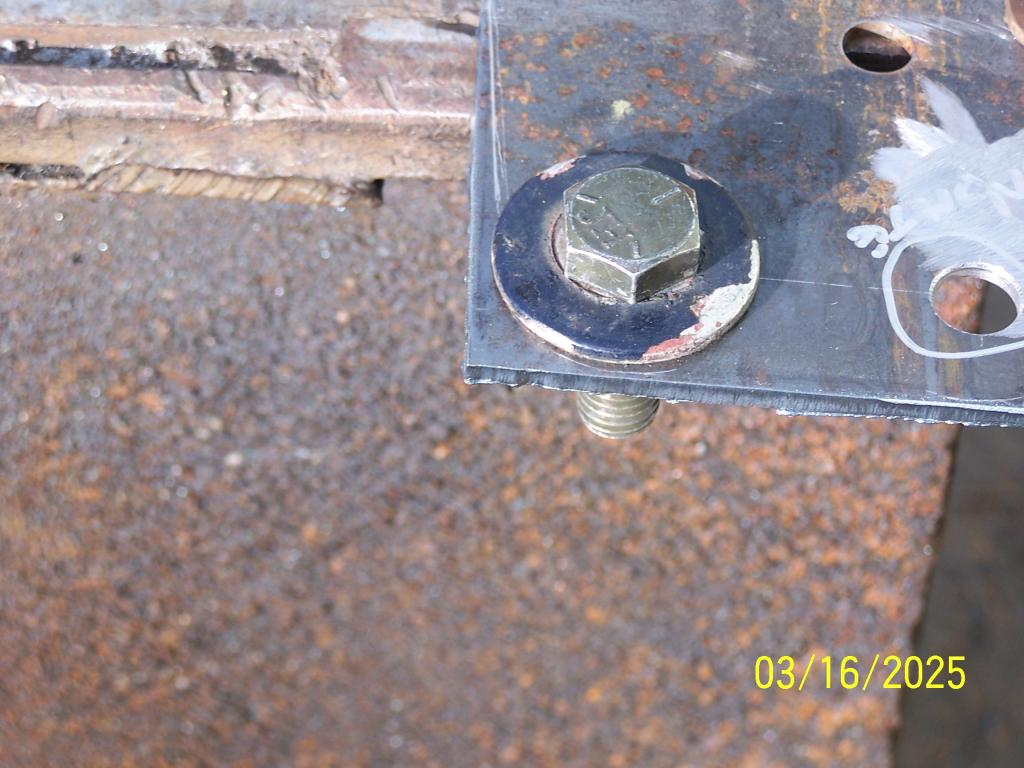

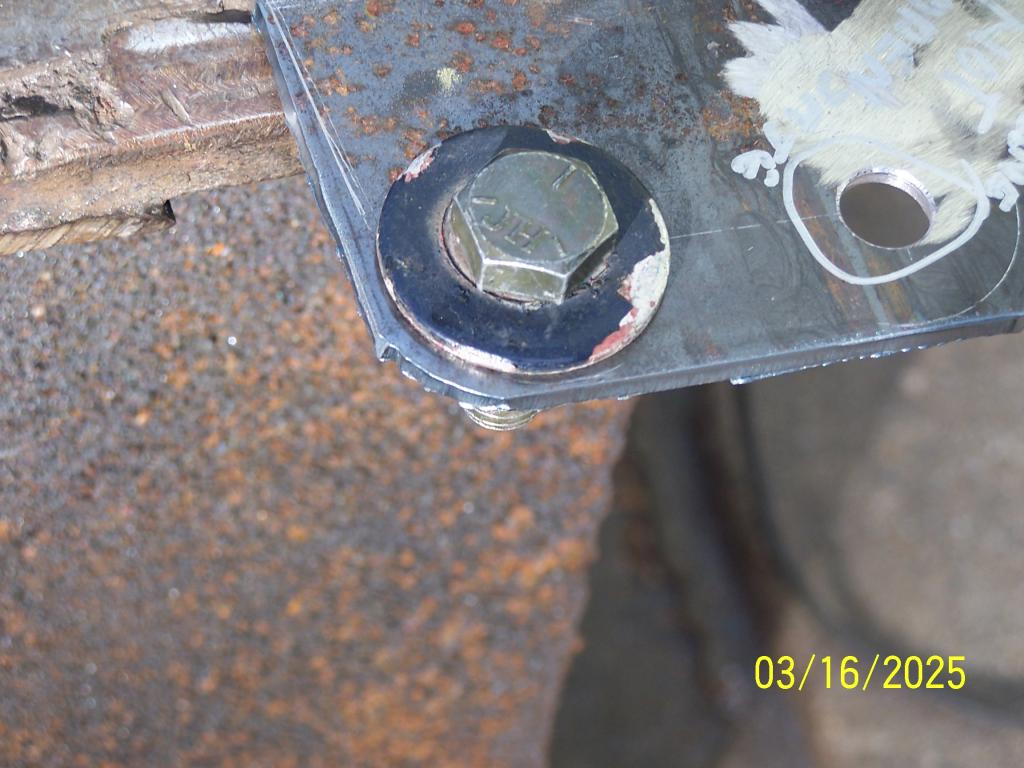

Next I found a 1.5" OD washer that fit a 1/2" bolt. I put the bolt/washer in a hole and tightened a nut finger tight and scribed around the washer. same with the other hole. Then roughly scribed the outline of the finished part.
Second and third pictures.

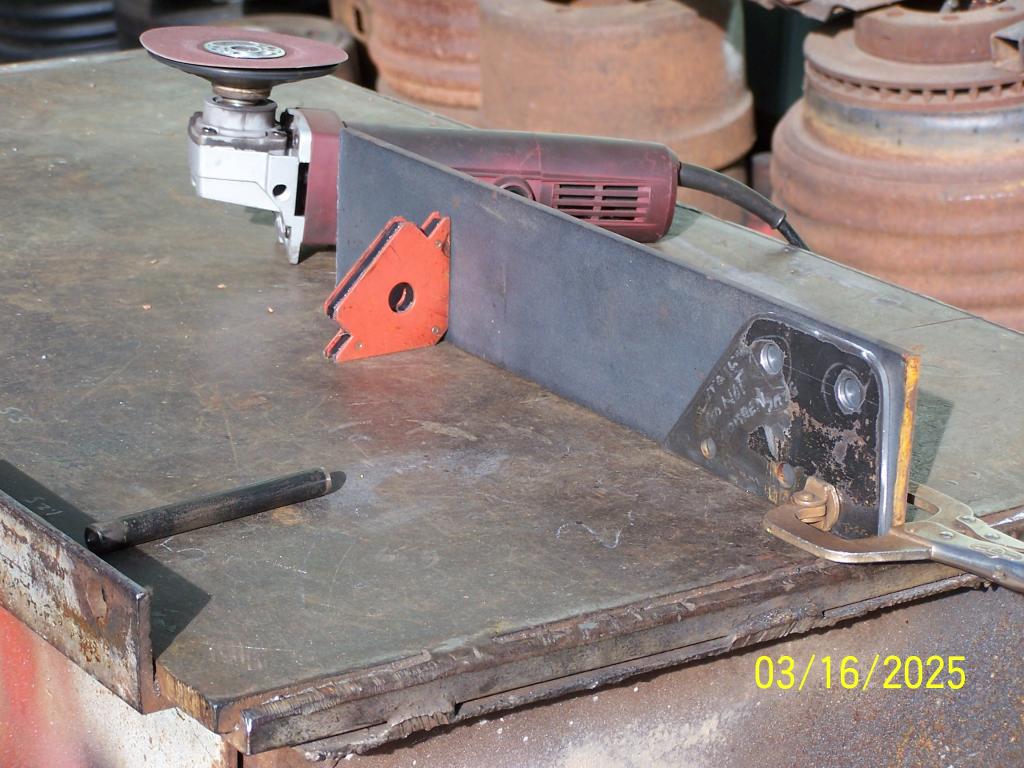

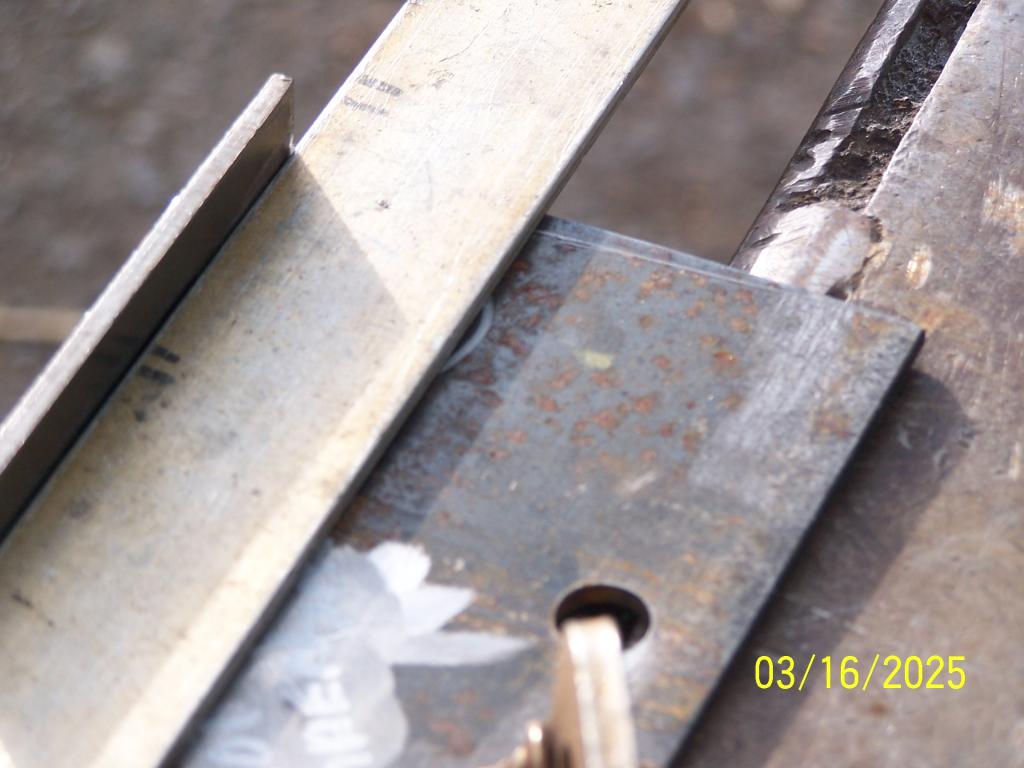

My plasma cutter cuts 1/8" from the outside of the drag tip to the inside of the flame where it cuts. Knowing that and that a scrap piece of 10 gauge is .130"( slightly more than 1/8") I use this piece to space the guide I use to cut straight edges.
More later
First picture.
I started with a piece of 10 gauge plate that just happened to be the right length. I measured down 2.75" and scribed a line across the plate then measured in 1" and 3" and center punched the spots where the lines crossed. I then drilled a 1/8" pilot hole next I drilled them out to 1/2" with a step drill.
Next I found a 1.5" OD washer that fit a 1/2" bolt. I put the bolt/washer in a hole and tightened a nut finger tight and scribed around the washer. same with the other hole. Then roughly scribed the outline of the finished part.
Second and third pictures.
My plasma cutter cuts 1/8" from the outside of the drag tip to the inside of the flame where it cuts. Knowing that and that a scrap piece of 10 gauge is .130"( slightly more than 1/8") I use this piece to space the guide I use to cut straight edges.
More later
#50
Registered User
Thread Starter

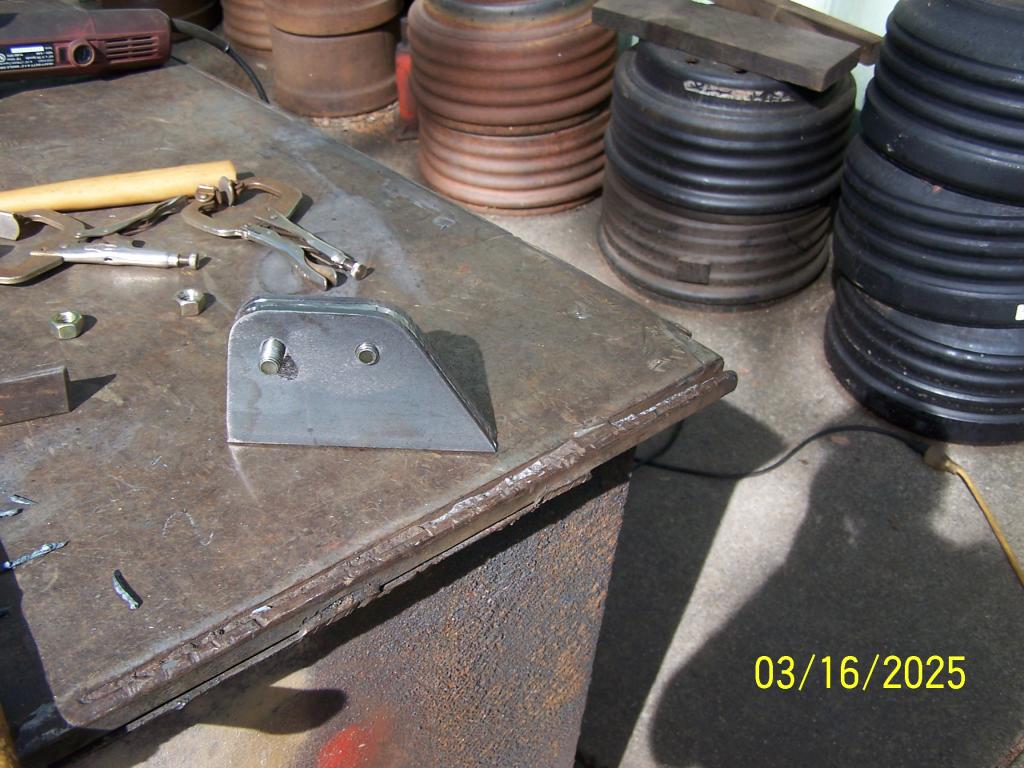

Next was to cut the straight edges. Then To do the lower radiuses using the washers and bolts. After that a bit of sanding with a 120 grit disk. Next WE put it to use. Note: In the last picture I ended up with a little nub. I figure that is better than going that much too far and having to weld it up and sand three sides instead of one. Remember if your template has a davot all the parts you cut will also.
#51
Registered User
Thread Starter

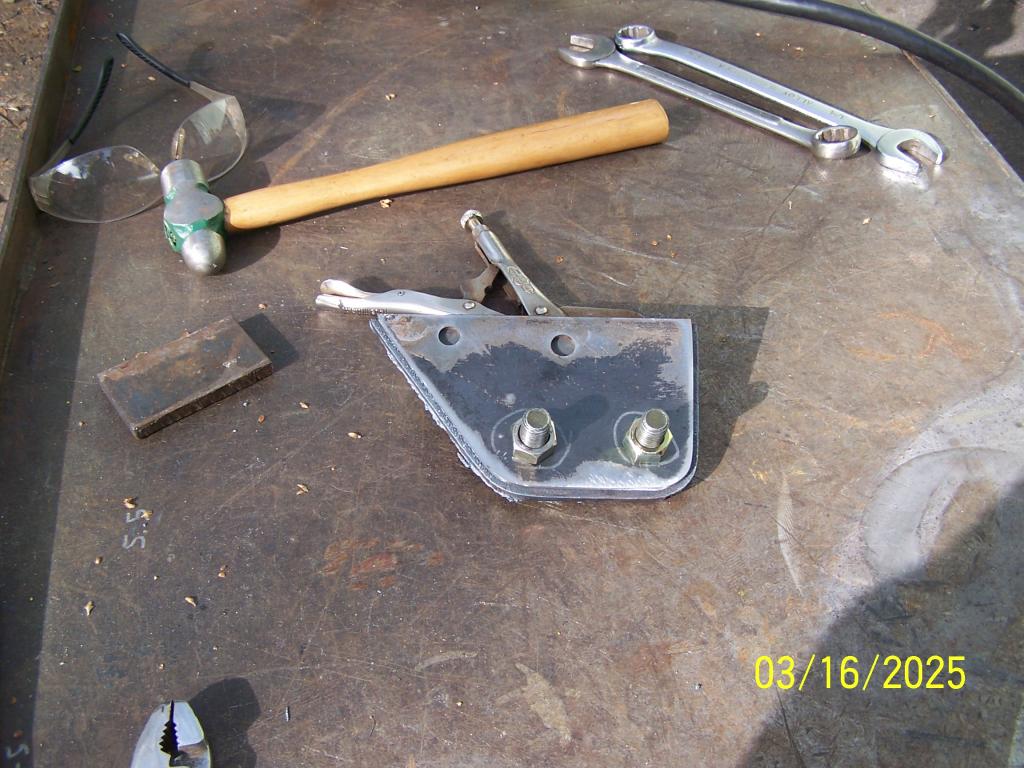

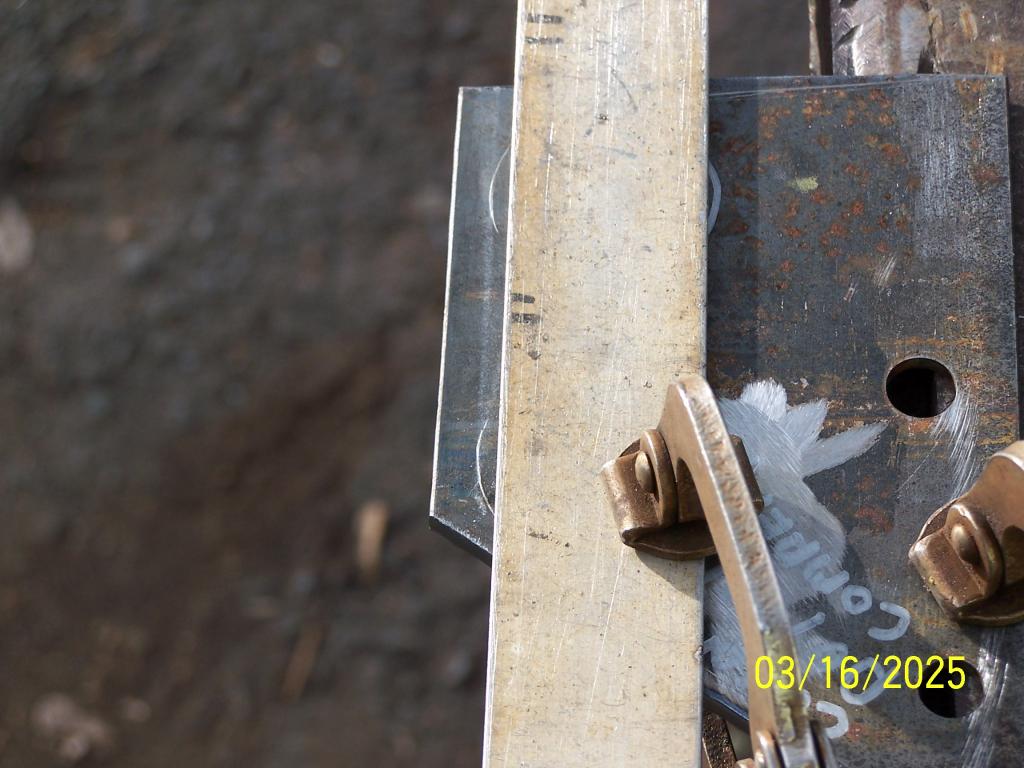

The next step is to line up the top edge of the template with the top of the plate to be cut and clamp. Next is to transfer punch the holes and drill to 1/2" I start at 1/8" then go in 1/8" increments. So that 's 1/8"1/4",3/8",1/2"
Then run the tip of the plasma cutter around the template.

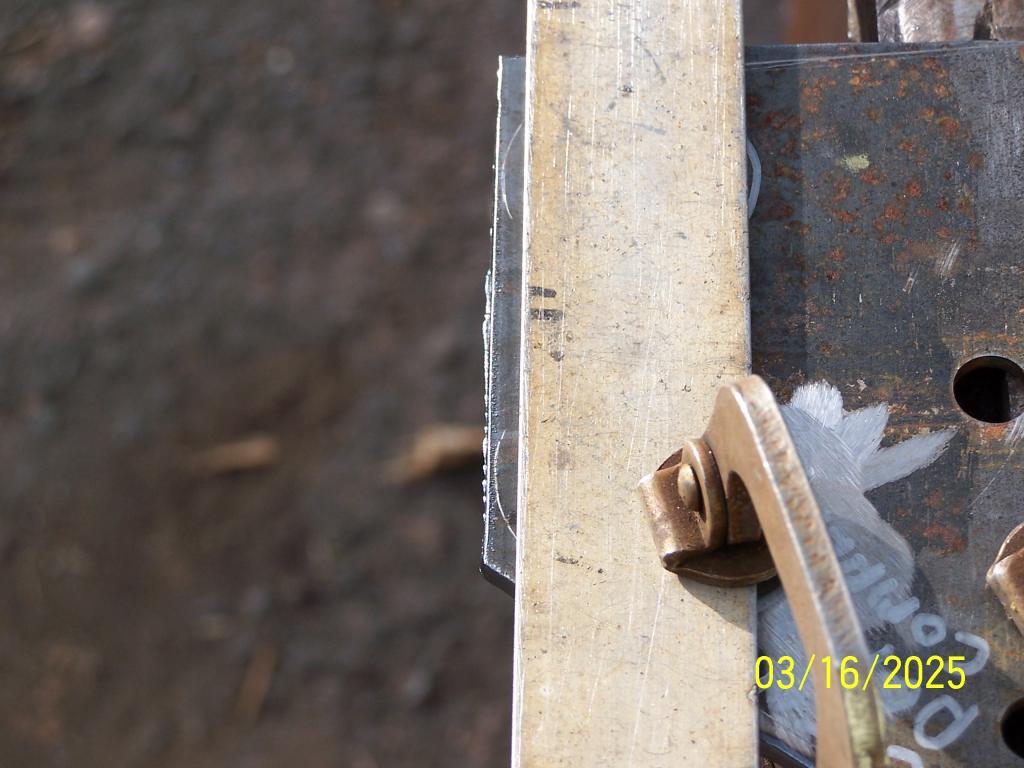

The last pic is three parts stacked. a little sanding with a #36 disk then a #80 will match them up.
Then run the tip of the plasma cutter around the template.
The last pic is three parts stacked. a little sanding with a #36 disk then a #80 will match them up.
#52
Registered User
You keep taunting me with your plasma cutter.....
Those plates look great. I like the step by step on how to make them all the same. I find it very informative. Always good to have additional ways to build things in the back of your mind.
Those plates look great. I like the step by step on how to make them all the same. I find it very informative. Always good to have additional ways to build things in the back of your mind.
#53
Registered User
Thread Starter
Thanks and I hope it helps someone that may be looking for new ways to make things.I am always trying to find better ways to build things.
#54
Registered User
Join Date: Dec 2010
Location: Land of the Toxic Avenger
Posts: 6,769
Received 1,637 Likes
on
1,112 Posts
Nice workup, Mcknittle....
I guess you work for either a scrap yard, or a trucking company ? All those big rig drums behind your work station.....
BTW, Thanks for making me feel 58 years old, instead of the 47 I really am. Time to change the date stamp in your camera, man !!! I'm old enough, thank you !
I guess you work for either a scrap yard, or a trucking company ? All those big rig drums behind your work station.....
BTW, Thanks for making me feel 58 years old, instead of the 47 I really am. Time to change the date stamp in your camera, man !!! I'm old enough, thank you !
#55
Registered User
Thread Starter
Nice workup, Mcknittle....
I guess you work for either a scrap yard, or a trucking company ? All those big rig drums behind your work station.....
BTW, Thanks for making me feel 58 years old, instead of the 47 I really am. Time to change the date stamp in your camera, man !!! I'm old enough, thank you !
I guess you work for either a scrap yard, or a trucking company ? All those big rig drums behind your work station.....
BTW, Thanks for making me feel 58 years old, instead of the 47 I really am. Time to change the date stamp in your camera, man !!! I'm old enough, thank you !
#56
Registered User
Thread Starter
Finally got some nice weather that I wasn't busy with something else.

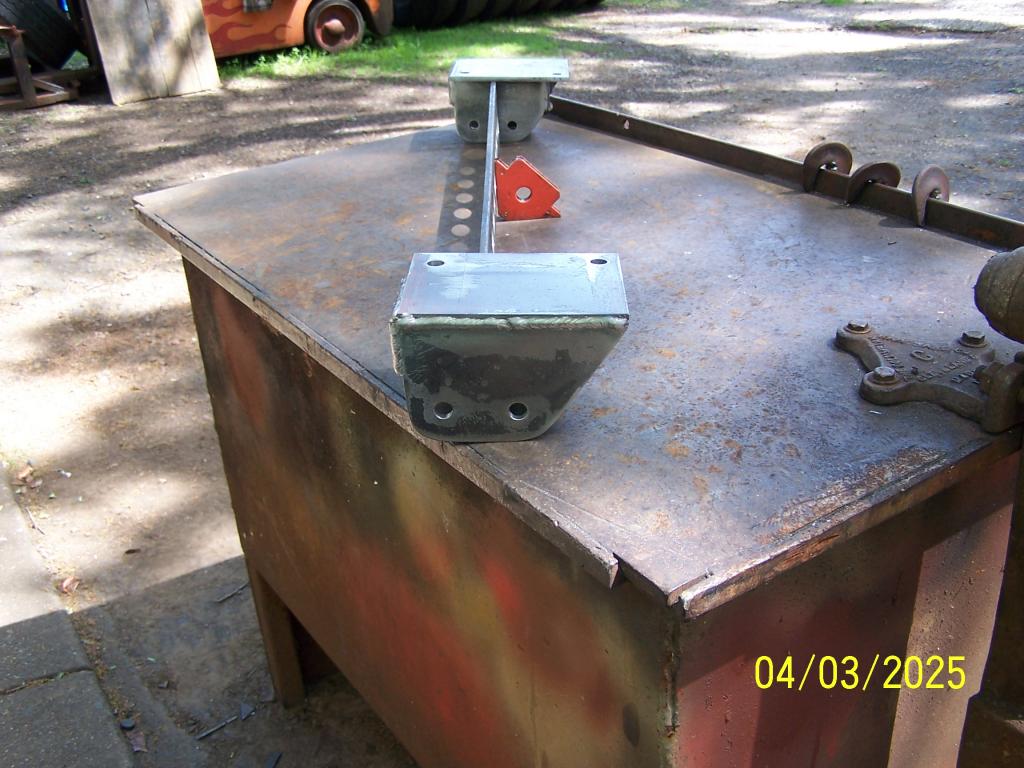

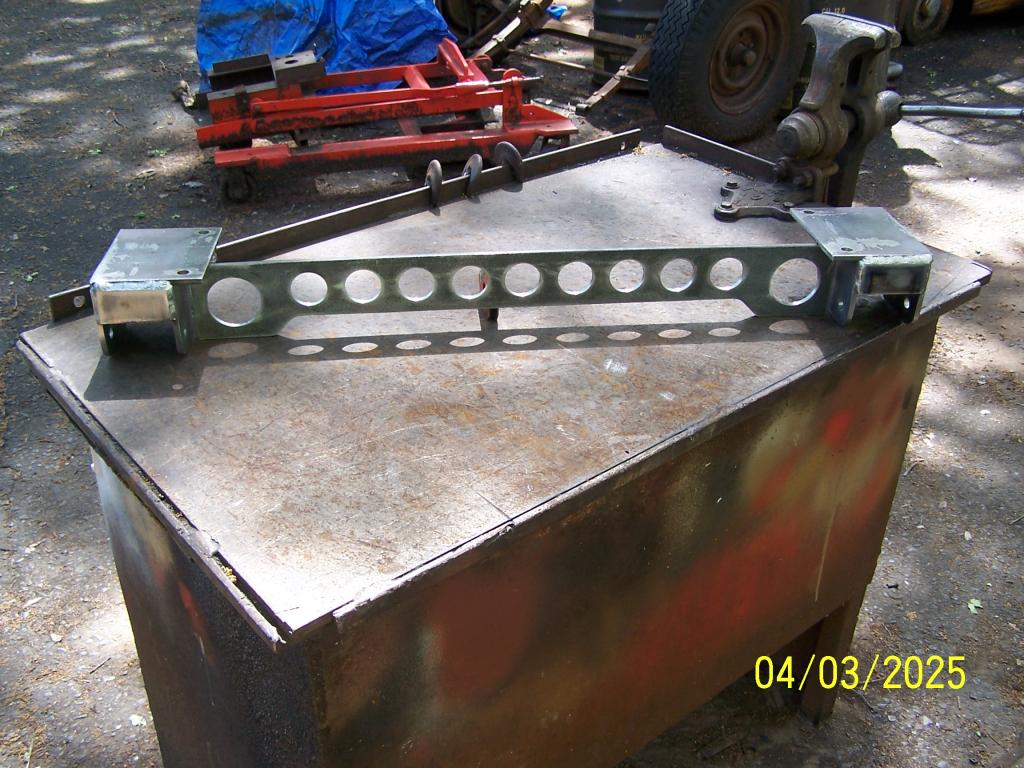

I got my spring hangers welded up. They need some minor tuning to all fit together better. but this in the basic idea.
