Throttle shaft play
Have you guys experienced what you would call excessive lateral play in the throttle shaft assembly ? I went to adjust my TV cable, and found that the throttle assembly pivot has a lot of lateral movement. There is a plastic bushing inside there, but its only on the side of the shaft towards the drivers side. I think this is why I have so much play. Instead of holding the shaft in place during rotation, its moving or pivoting laterally.
How many bushings supposed to be in there? One on the outside or both inner and outer. They made the assembly serviceable with the removable rear clip
TIA
How many bushings supposed to be in there? One on the outside or both inner and outer. They made the assembly serviceable with the removable rear clip
TIA
#2
Registered User
Thread Starter
Join Date: Dec 2010
Location: Land of the Toxic Avenger
Posts: 6,769
Received 1,637 Likes
on
1,112 Posts
Thanks Guys !
Lol
Just kidding....
So, I took the assembly apart again. There was no way I was able to properly adjust the TV cable because of all the lateral play in the shaft. It just wouldn't function properly, as when the accelerator was pressed, instead of pulling the arm back on the shaft, it was shifting laterally first. This meant that there was a delay in the actual application or pressure against the TV Cable hoop.
So,

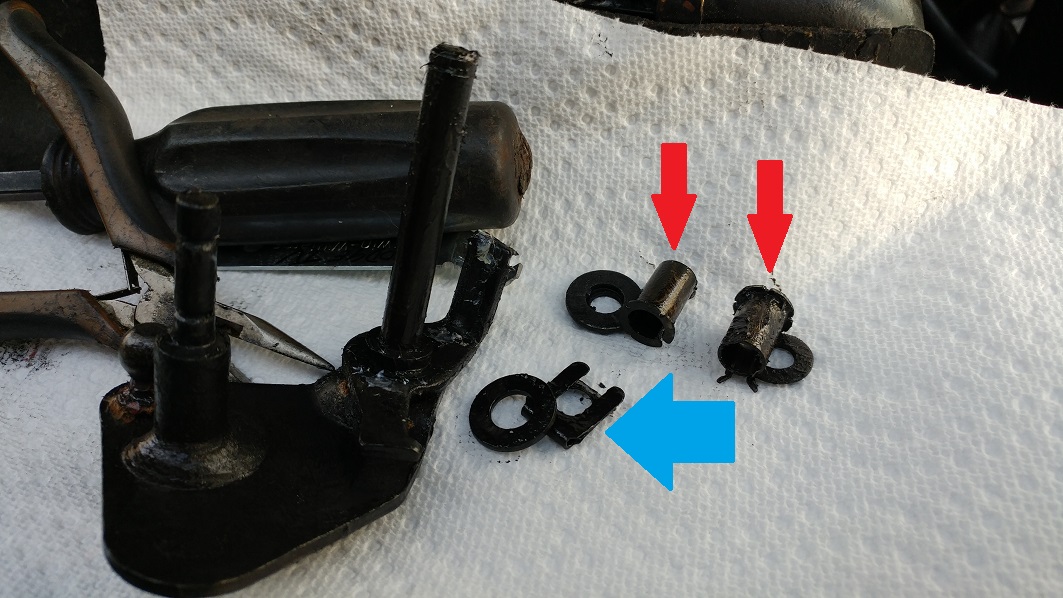

After disassembly, I found that there are indeed 2 bushings. One front and one behind. I didn't know this until I reinserted the shaft back in the tube after removing the clip and washer. This pushed the nylon bushing out into my hand, which allowed me to clean and inspect it.
Once I had the arm / shaft assembly cleaned, I realized that the lateral play wasn't the bushings at all. They were in good shape, and didn't need replacing. The actual problem was the shaft / arm assembly itself.
Chrysler or Cummins, in order to save time, I guess, decided that a "press fit" was the way to assemble the shaft / arm assembly. Well, I guess it was loose forever, or just over time loosened up the "tightness" of the press fit where the shaft goes though the arm assembly plates. I first thought I would weld the two together, but after not being to easily access my welder, I thought why not "re press" the assembly together and see what happens. Worked like a charm. The bushings are in red arrows, and the solid blue arrow is the clip and washer that holds the assembly in the tube. Don't lose that clip, as you will be beating yourself up if you do.

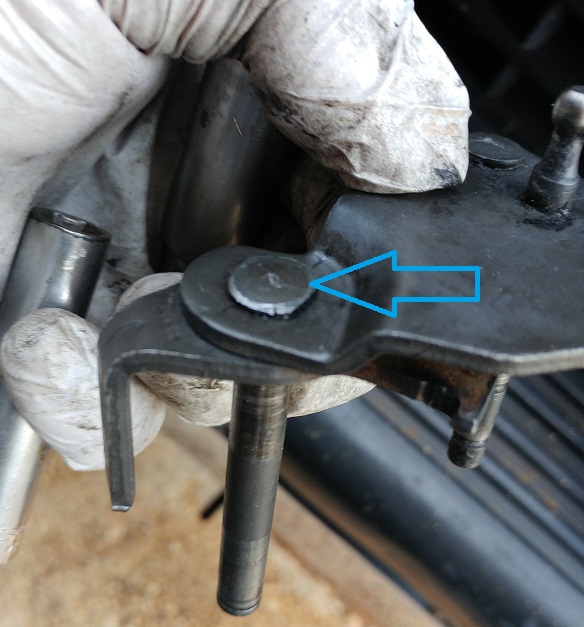

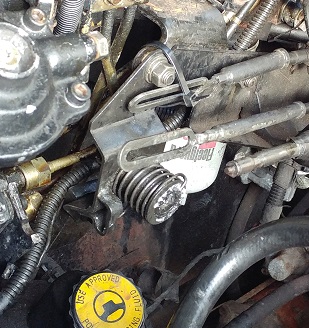

Here you can see the shaft was pressed into the arm, (blue outlined arrow) and that juncture was actually just slightly loose. The third pic is the tube in which the assembly goes back into with the two nylon bushings.
Lol
Just kidding....
So, I took the assembly apart again. There was no way I was able to properly adjust the TV cable because of all the lateral play in the shaft. It just wouldn't function properly, as when the accelerator was pressed, instead of pulling the arm back on the shaft, it was shifting laterally first. This meant that there was a delay in the actual application or pressure against the TV Cable hoop.
So,
After disassembly, I found that there are indeed 2 bushings. One front and one behind. I didn't know this until I reinserted the shaft back in the tube after removing the clip and washer. This pushed the nylon bushing out into my hand, which allowed me to clean and inspect it.
Once I had the arm / shaft assembly cleaned, I realized that the lateral play wasn't the bushings at all. They were in good shape, and didn't need replacing. The actual problem was the shaft / arm assembly itself.
Chrysler or Cummins, in order to save time, I guess, decided that a "press fit" was the way to assemble the shaft / arm assembly. Well, I guess it was loose forever, or just over time loosened up the "tightness" of the press fit where the shaft goes though the arm assembly plates. I first thought I would weld the two together, but after not being to easily access my welder, I thought why not "re press" the assembly together and see what happens. Worked like a charm. The bushings are in red arrows, and the solid blue arrow is the clip and washer that holds the assembly in the tube. Don't lose that clip, as you will be beating yourself up if you do.
Here you can see the shaft was pressed into the arm, (blue outlined arrow) and that juncture was actually just slightly loose. The third pic is the tube in which the assembly goes back into with the two nylon bushings.
#3
Registered User
Thread Starter
Join Date: Dec 2010
Location: Land of the Toxic Avenger
Posts: 6,769
Received 1,637 Likes
on
1,112 Posts

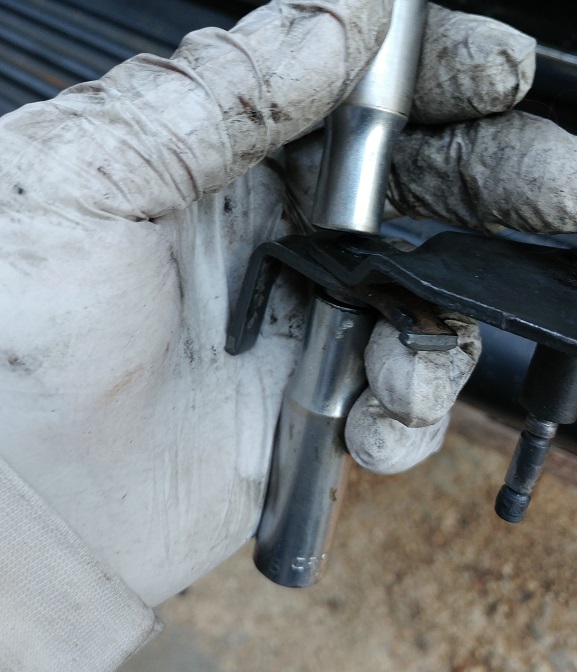

So, I fixed the assembly by taking two long sockets out of my tool chest, and used the two to "cold press" the two back together with my hammer. Took but a few smacks, and the assembly was tighter than the wallet of an old man at the grocery store.
The bushings are cleaned up, and greased before reassembling the assembly back together. Again, that clip needs to fit on the end of that shaft towards the engine block. Make sure it's on there before you let go. The clock spring catches the inner plate that's behind the outer arm assembly. Make sure that catches that inner plate as well.
Finally, how to set the TV cable properly to .180 or .457MM ?

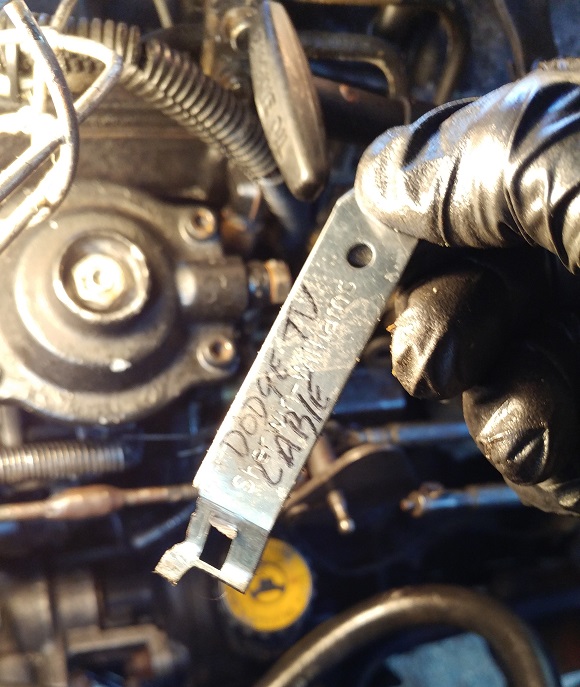

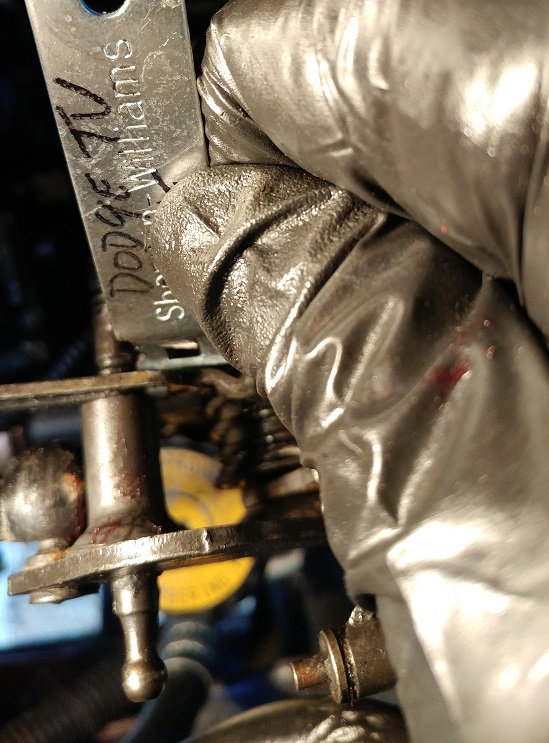

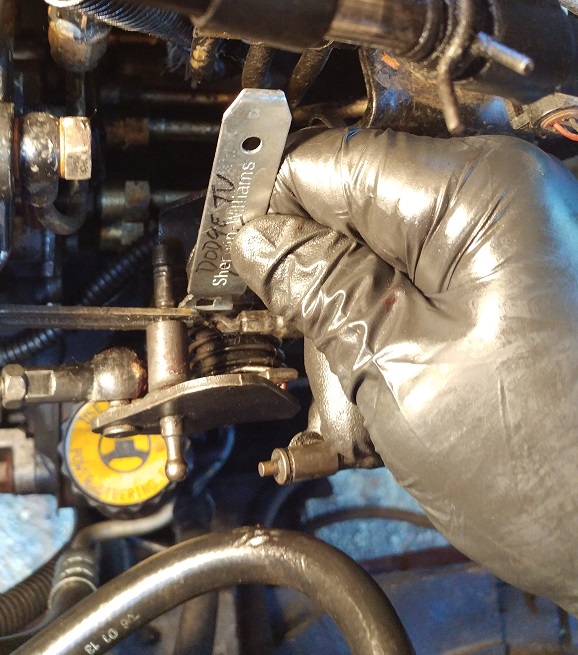

Easy. make yourself a guide for it. I took an old paint can / bottle opener, and made the end tang exactly .180 of an inch. I then inserted it into the space between the rod and the TV Cable hoop. I left the return spring on, as it kept pressure on the new guide spacer I made, and then I locked the clip on the TV Cable assembly back near the firewall.
What happened ?
Truck actually shifts better now than it ever has. Go figure, eh ?
The bushings are cleaned up, and greased before reassembling the assembly back together. Again, that clip needs to fit on the end of that shaft towards the engine block. Make sure it's on there before you let go. The clock spring catches the inner plate that's behind the outer arm assembly. Make sure that catches that inner plate as well.
Finally, how to set the TV cable properly to .180 or .457MM ?
Easy. make yourself a guide for it. I took an old paint can / bottle opener, and made the end tang exactly .180 of an inch. I then inserted it into the space between the rod and the TV Cable hoop. I left the return spring on, as it kept pressure on the new guide spacer I made, and then I locked the clip on the TV Cable assembly back near the firewall.
What happened ?
Truck actually shifts better now than it ever has. Go figure, eh ?
#5
Registered User
I think I would have tack welded it.
#6
Registered User
NJT I don't want to come off like I am hijacking your awesome write up. The 93 D350 dad and I plan to finish off as a tow rig has a lot of slop on the stub on the pump itself. Not the part that the adjustment shaft snaps on but the stud that sticks up towards the hood and when the throttle is given it actually makes contact with a spring which almost has the stud worn completely in half. I remember a few years ago people said that on high mileage rigs that when that stud wore in half the throttle would not engage. One guy stating it literally it wore through when he stopped at a stop light. Then the truck just idled. If I am not mistaken at that time someone was selling a sleeve/cap that slid down over the stud which would save it and not require pulling the pump apart to switch that piece out. Two questions. One does everyone know which stud I am referring to? Whats that stud called? Second does anyone know where I can buy that sleeve/cap to install on the stud on our tow rig before it completely wears in half. Sorry again NJT for hijacking the thread.
#7
Registered User
NJT pretty much nailed it- I just went thru the same thing on mine with 300k miles
Once the plastic bushings wear away, the shaft metal starts wearing. I had to mig weld some new metal in mine and then slowly dremel it to "kind of" round and then finish polish it.
I ended up using a brass 5/16 sleeve from the local hardware store and used that instead of the plastic on my spare linkage. I suppose you could make your own "speedi sleeve" with some careful sanding and a very hot metal sleeve sliding over a very cold shaft, and still keep the plastic bushings, which are superior to the metal IMO
Also not the detents on mine were worn and I had to MIG the metal back into those as well, then file flat back to OEM specs
Once the plastic bushings wear away, the shaft metal starts wearing. I had to mig weld some new metal in mine and then slowly dremel it to "kind of" round and then finish polish it.
I ended up using a brass 5/16 sleeve from the local hardware store and used that instead of the plastic on my spare linkage. I suppose you could make your own "speedi sleeve" with some careful sanding and a very hot metal sleeve sliding over a very cold shaft, and still keep the plastic bushings, which are superior to the metal IMO
Also not the detents on mine were worn and I had to MIG the metal back into those as well, then file flat back to OEM specs
Trending Topics
#8
Registered User
Thread Starter
Join Date: Dec 2010
Location: Land of the Toxic Avenger
Posts: 6,769
Received 1,637 Likes
on
1,112 Posts
NJT I don't want to come off like I am hijacking your awesome write up. The 93 D350 dad and I plan to finish off as a tow rig has a lot of slop on the stub on the pump itself. Not the part that the adjustment shaft snaps on but the stud that sticks up towards the hood and when the throttle is given it actually makes contact with a spring which almost has the stud worn completely in half. I remember a few years ago people said that on high mileage rigs that when that stud wore in half the throttle would not engage. One guy stating it literally it wore through when he stopped at a stop light. Then the truck just idled. If I am not mistaken at that time someone was selling a sleeve/cap that slid down over the stud which would save it and not require pulling the pump apart to switch that piece out. Two questions. One does everyone know which stud I am referring to? Whats that stud called? Second does anyone know where I can buy that sleeve/cap to install on the stud on our tow rig before it completely wears in half. Sorry again NJT for hijacking the thread.
I would have tack welded it if my shop wasn't in such disarray. If it ever loosens up again, it's getting welded. For all I know, it will last another 200,000 miles.
Hey Freight train..

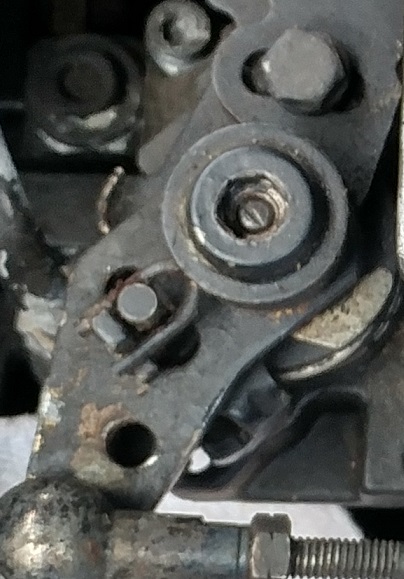

Is this the pin you are speaking of ? The spring is actually starting to wear into the pin on the upper side where the rust is on the spring leg. now it's packed with grease, but really ? How weird is that ?
