Stud Install Question
#1
Registered User
Thread Starter
Stud Install Question
Got started on my stud installtoday, but ran into a question. On the holes between cylinders 5 and 6, and 1 and 2, on the driver's side, between the pushrods for those cylinders, I have found 2 shallow holes. These would be the holes on the outside edge, but under the valve cover. The studs, when bottomed out, are about 1/4" higher than the other studs I have installed.
All of the studs in the kit are the same length. I checked the hole and it is plenty deep, but, I guess, doesn't have threads all the way down.
I wonder if this is OK, or if I have a problem. The head bolt is short enough that this doesn't matter, but the studs are longer, and for these holes, the studs sit high. Is this OK, or am I gonna need to make a special tap to put some more threads in the holes?
Thanks,
Chris
All of the studs in the kit are the same length. I checked the hole and it is plenty deep, but, I guess, doesn't have threads all the way down.
I wonder if this is OK, or if I have a problem. The head bolt is short enough that this doesn't matter, but the studs are longer, and for these holes, the studs sit high. Is this OK, or am I gonna need to make a special tap to put some more threads in the holes?
Thanks,
Chris
#4
DTR Advertiser
Hi Chris,
Yes, some blocks seem to get tapped deeper and some get tapped at all different depths. You are correct, there is plenty of thread for a stock bolt, but not studs.
I dont know how easy it will be to tap those holes with the head installed, but I would find a way to make that happen. Some extensions made for taps could be modded or perhaps find a long tap.
Don~
Yes, some blocks seem to get tapped deeper and some get tapped at all different depths. You are correct, there is plenty of thread for a stock bolt, but not studs.
I dont know how easy it will be to tap those holes with the head installed, but I would find a way to make that happen. Some extensions made for taps could be modded or perhaps find a long tap.
Don~
#5
Registered User
Thread Starter
So the next question would be, how deep do the studs need to be in the block to be OK?
With the tall ones I have, the thread at the top just barely gets to the level of the head hole, and then I have the washer thickness worth of thread before the nut reaches the end of the threads on the top end.

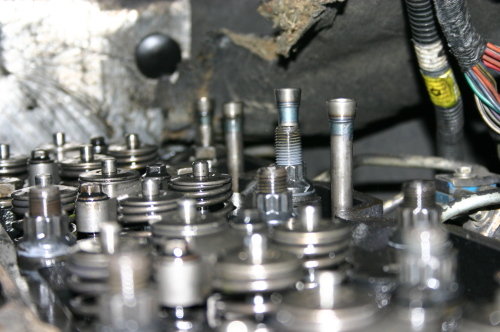

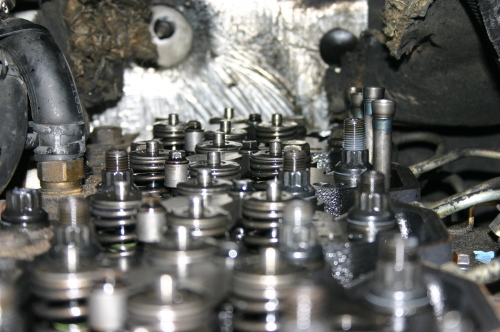

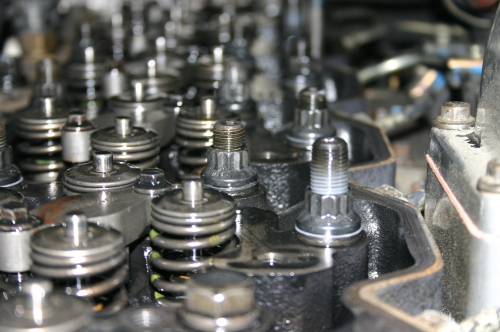

On the holes along the oustide of the VC, on thr passenger side, the holes are already tapped deeper, as the end of the stud just barely sticks out of the end of the nut. This can be seen in pic number 2, for the stud in from of the heater hose on the left side of that pic.
Thanks,
Chris
With the tall ones I have, the thread at the top just barely gets to the level of the head hole, and then I have the washer thickness worth of thread before the nut reaches the end of the threads on the top end.
On the holes along the oustide of the VC, on thr passenger side, the holes are already tapped deeper, as the end of the stud just barely sticks out of the end of the nut. This can be seen in pic number 2, for the stud in from of the heater hose on the left side of that pic.
Thanks,
Chris
#6
Registered User
The ARP studs that I have came in two different lengths. There were 6 long ones (not much longer), that go on the exhaust side of the head. Are you sure yours are all the same length?
Paul
Paul
