ok guys im looking to hook up my cab lights tonight. i need to know the measurements for the lights on the top of the cab. example how far from the front windshield and the measurements from one light to another. also need to know what wire to splice into behind the light switch inside the cab so they will come on when i turn my running lights on. please help. i really want to get this done tonight.



do you have the head liner out? i thought there were plugs that showed right where they go under (or over whatever way you think of it) the liner



yeah it has the holes in the bottom metal and im going to drill straight up through there, but dont really have a actual size diagram of the light to line up over the hole so i know exactly where to put the light



Hang on...



come on guys i know somebody out there has measurements that i can use.



man if you have the measurements i will hang on

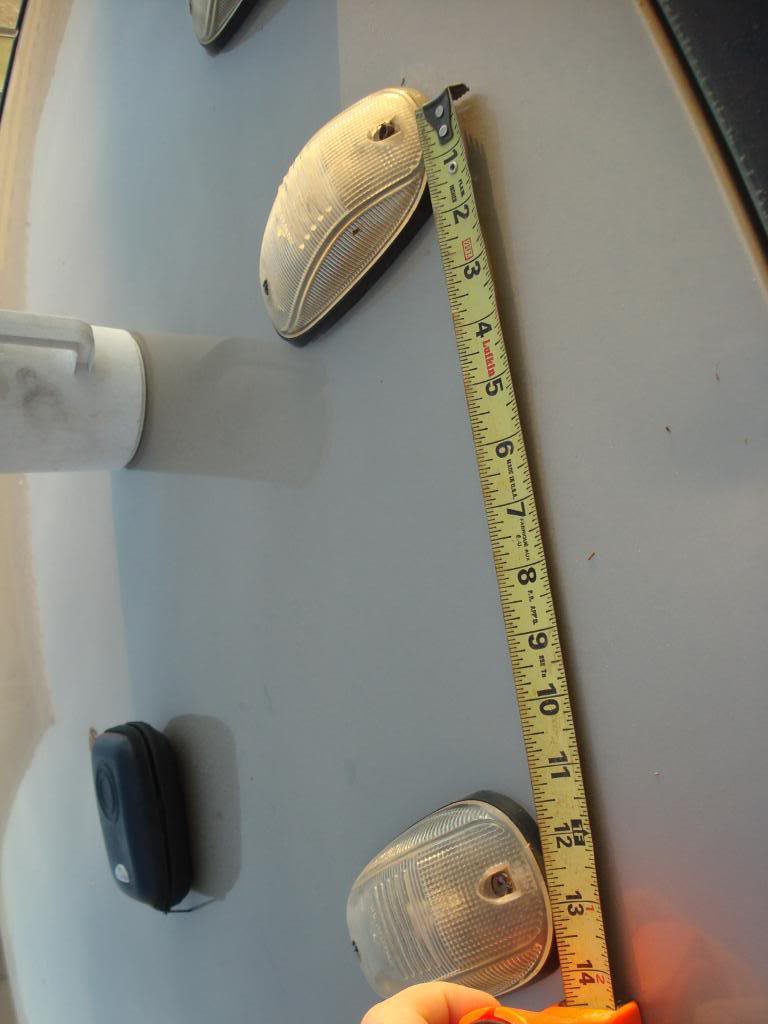

Ok, I took some pictures from the passenger side to the driver side...

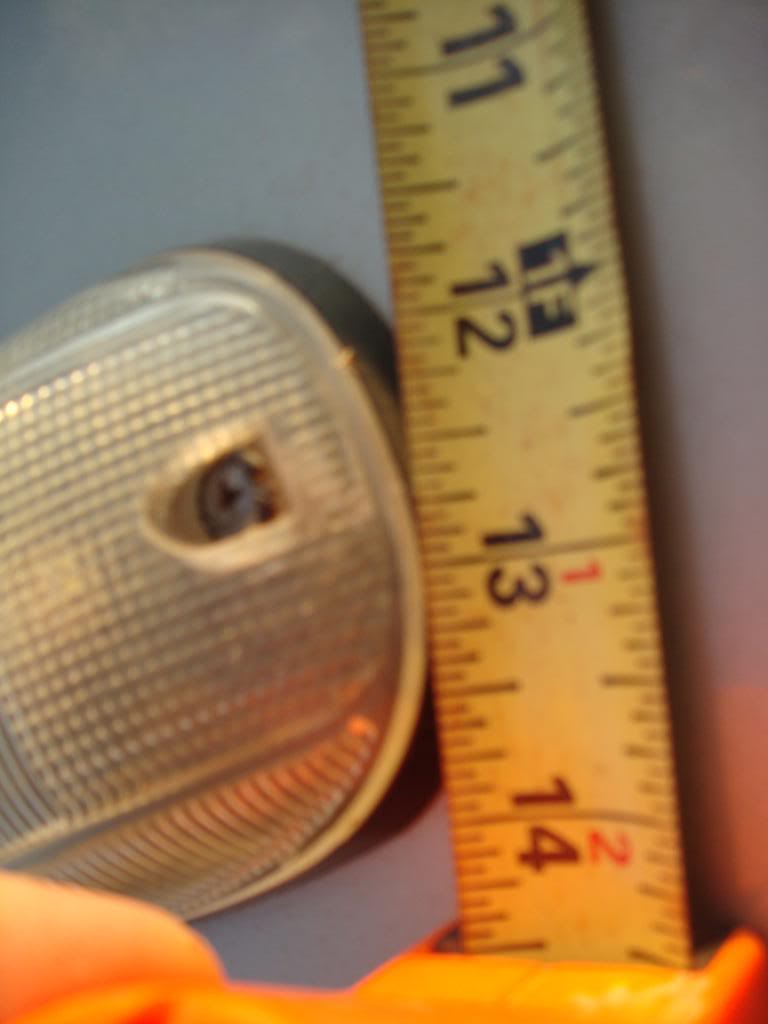

From the passenger door to the side of the light...

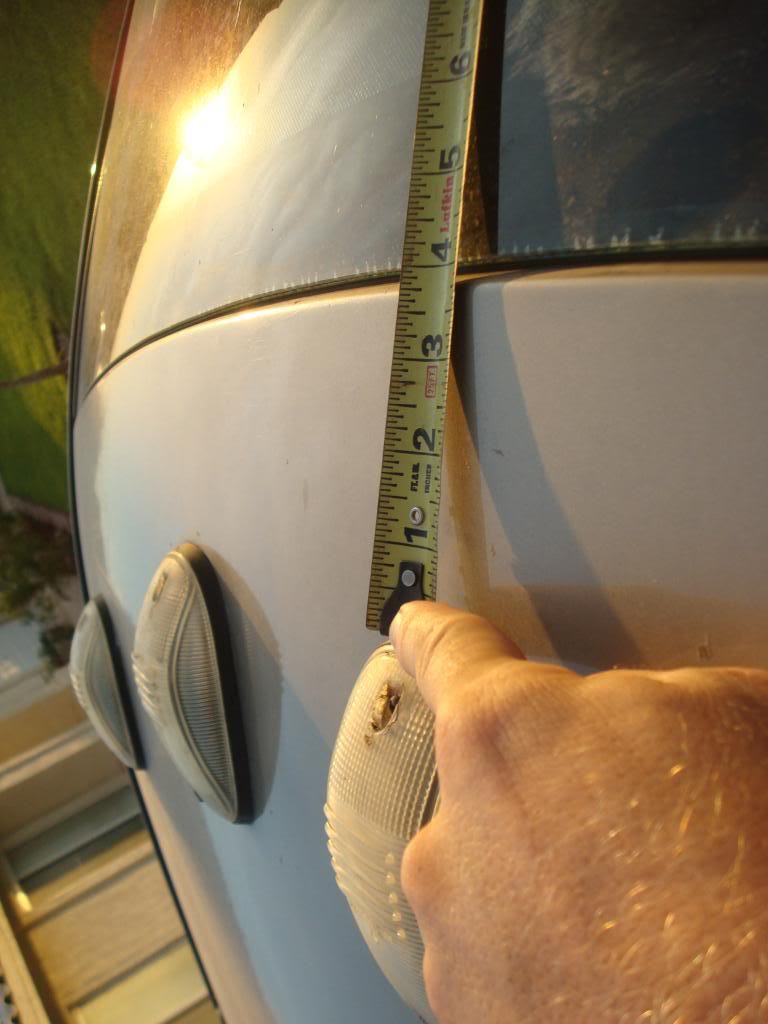

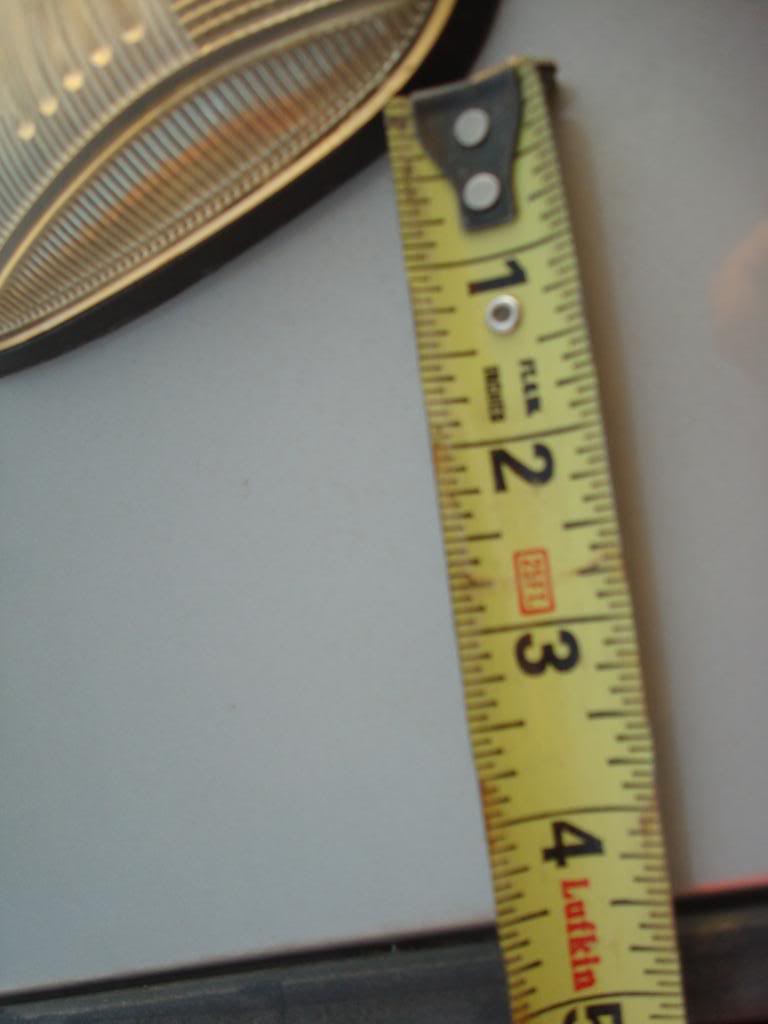

From the front of the light to the windshield...

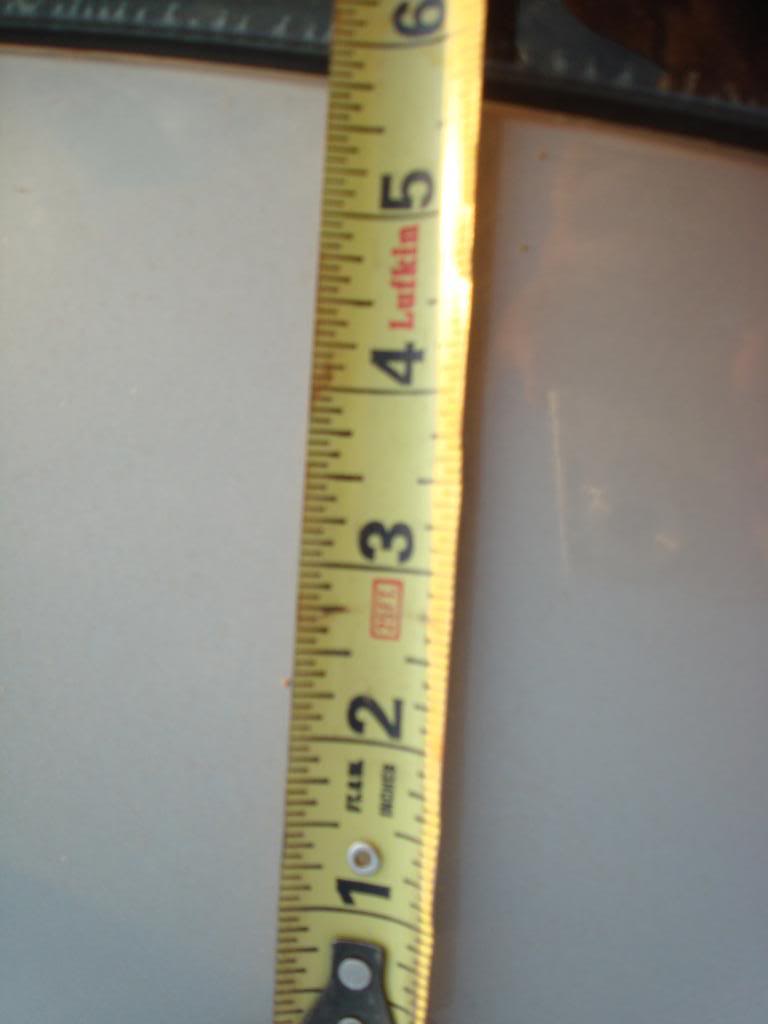

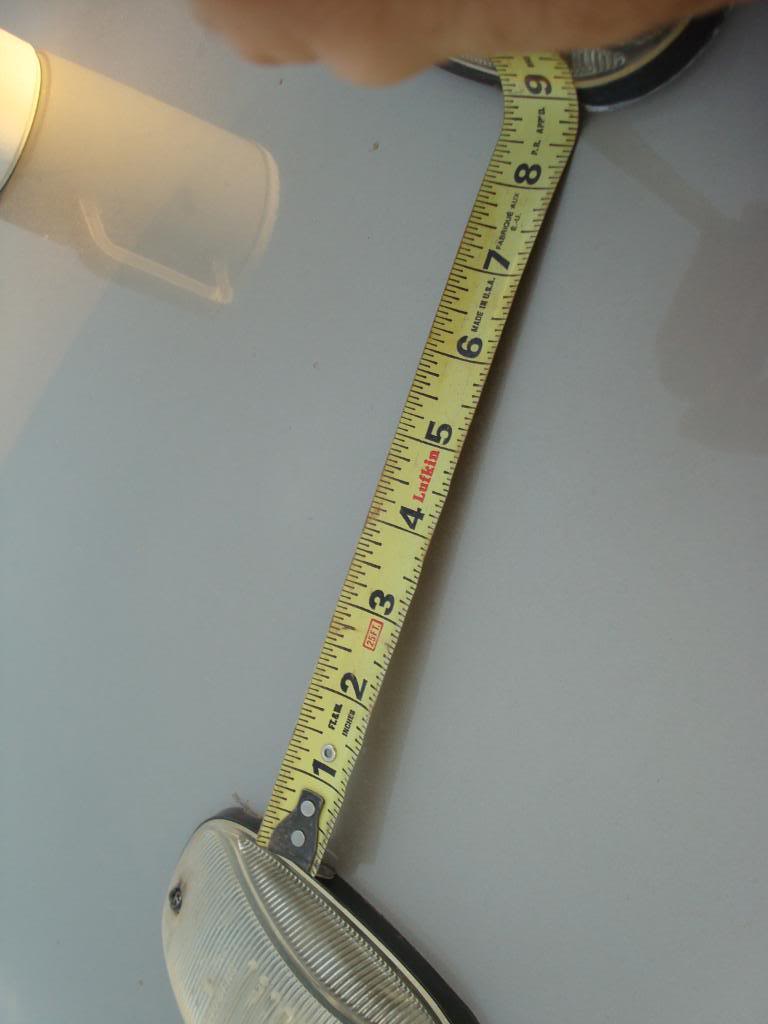

First to second light...

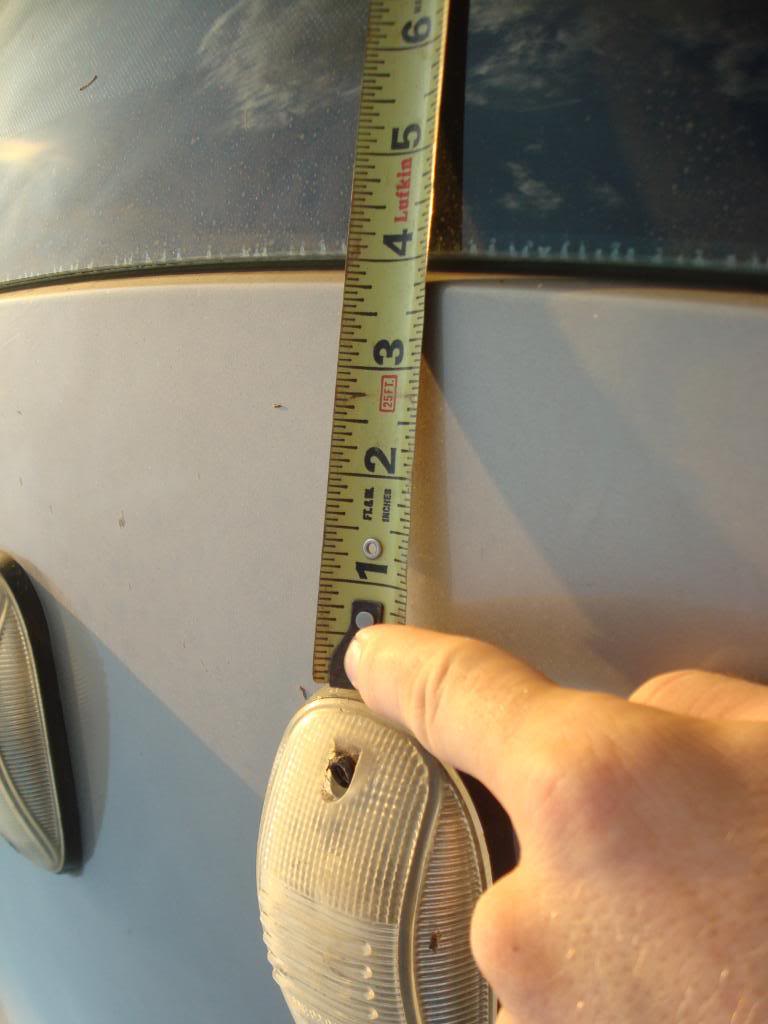

Second light to windshield...

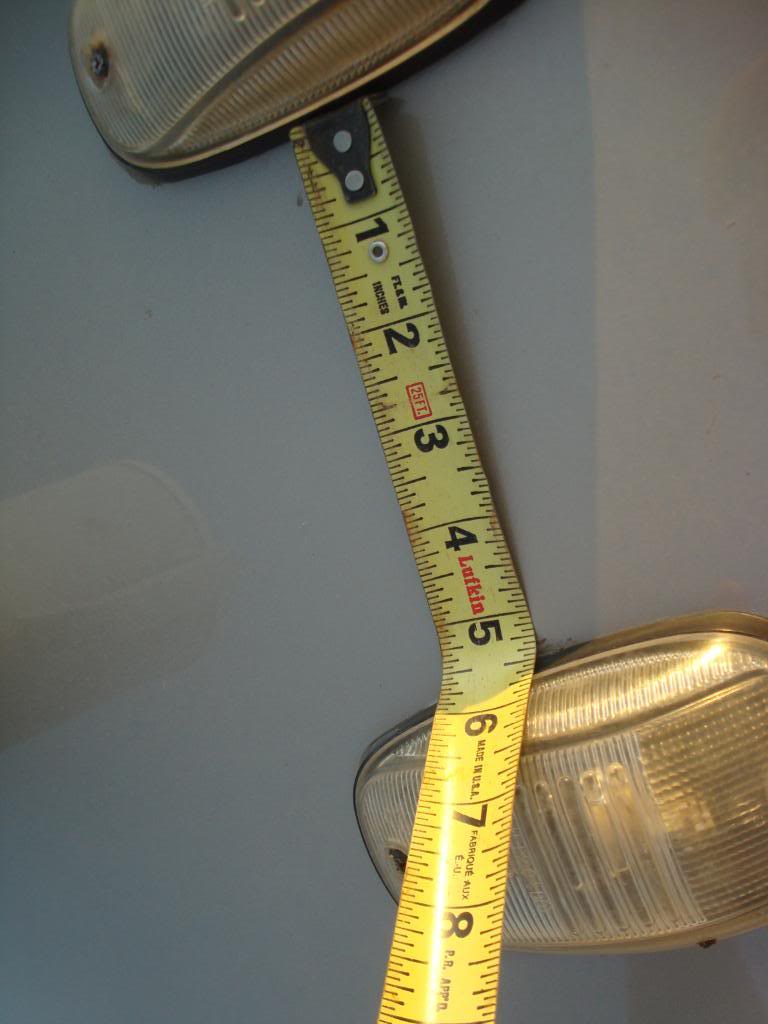

Second to third...



Third to windshield...



Third to fourth...



Fourth to windshield...



Fourth to fifth...

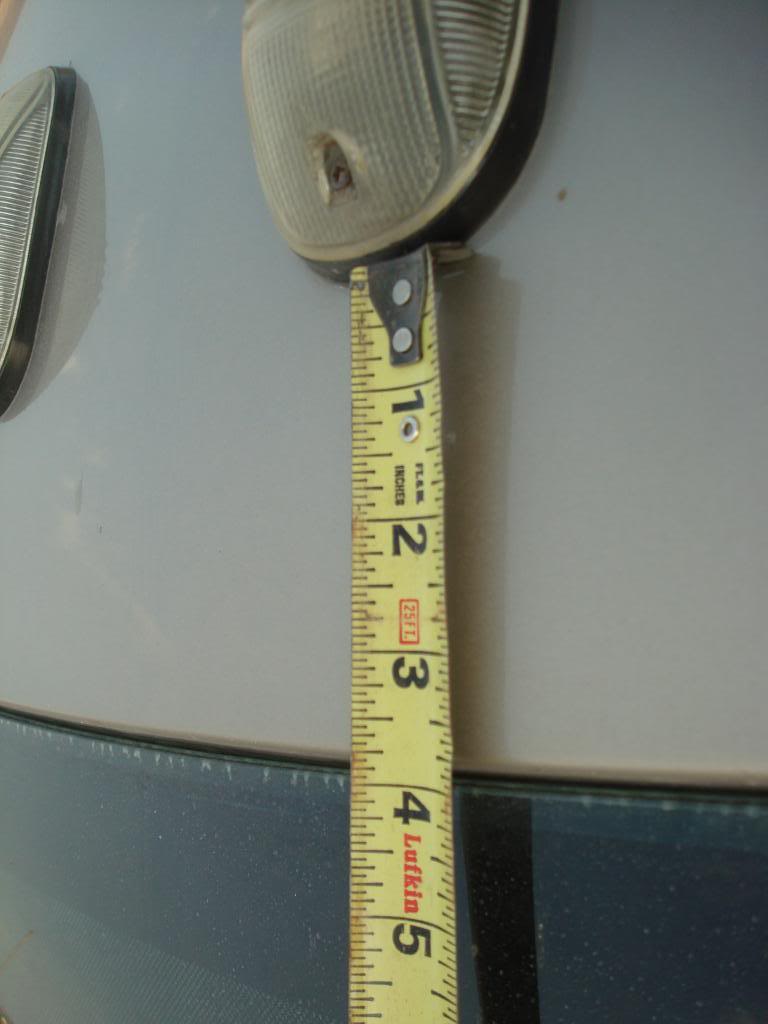

Fifth to windshield...

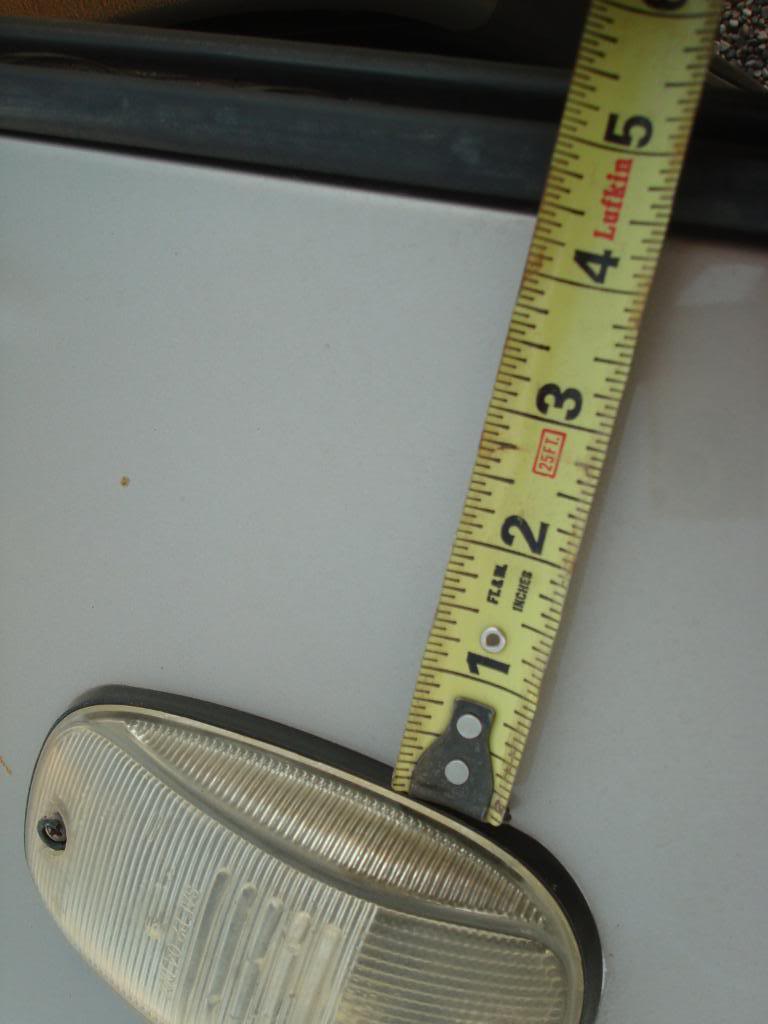

Fifth to side...



Hope this helps. Don't know the wire combo, I had factory lights. I'd just use a multimeter and see which wire had power when you kick the switch on.



man, you are a life saver



If that ain't good enough, I'll take the lights off and make you an actual template, but you'll have to wait until this weekend, and the time it takes me to mail it to you.



Thanks! I do my best...



man thats great. i will be getting on this asap
