2005 Cummins CR air intake elbow dimensions

What are the inside diameters of the turbo air intake elbow?

Reply Like

12-22-2010, 07:06 AM

madhat

Administrator/Jarhead

Join Date: Jun 2006

Location: Jacksonville, NC

Posts: 14,965

Likes: 4

Received 19 Likes on 19 Posts

Not very big, I'll tell you that. PM me, when I get home from work tonight, I'll measure mine and take some pics.

Reply Like

12-24-2010, 11:18 AM

oxman504

Registered User

Thread Starter

Join Date: Dec 2010

Posts: 4

Likes: 0

Received 0 Likes on 0 Posts

Thanks. I need some measurements to start making one, like you said it's not that big.

Reply Like

12-24-2010, 11:23 AM

oxman504

Registered User

Thread Starter

Join Date: Dec 2010

Posts: 4

Likes: 0

Received 0 Likes on 0 Posts

Oh have a Merry Christmas and a Happy New Year!

Reply Like

12-24-2010, 11:32 AM

madhat

Administrator/Jarhead

Join Date: Jun 2006

Location: Jacksonville, NC

Posts: 14,965

Likes: 4

Received 19 Likes on 19 Posts

My bad, dude. You didn't PM me, and I forgot... hang on...

Reply Like

12-24-2010, 11:40 AM

madhat

Administrator/Jarhead

Join Date: Jun 2006

Location: Jacksonville, NC

Posts: 14,965

Likes: 4

Received 19 Likes on 19 Posts

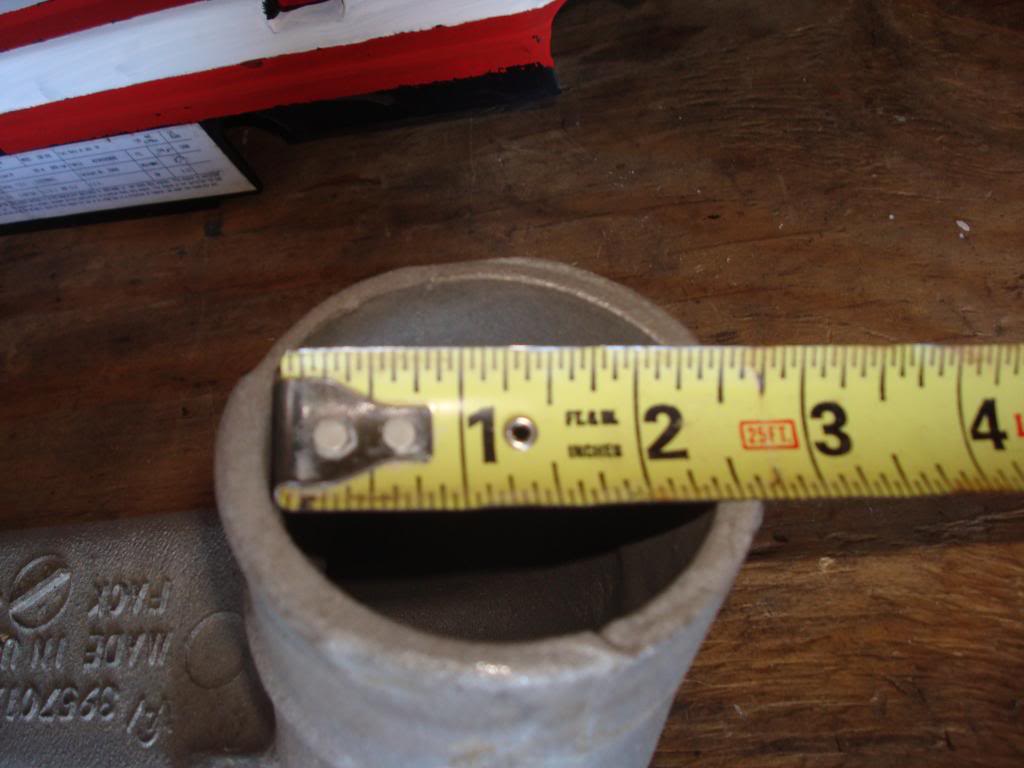

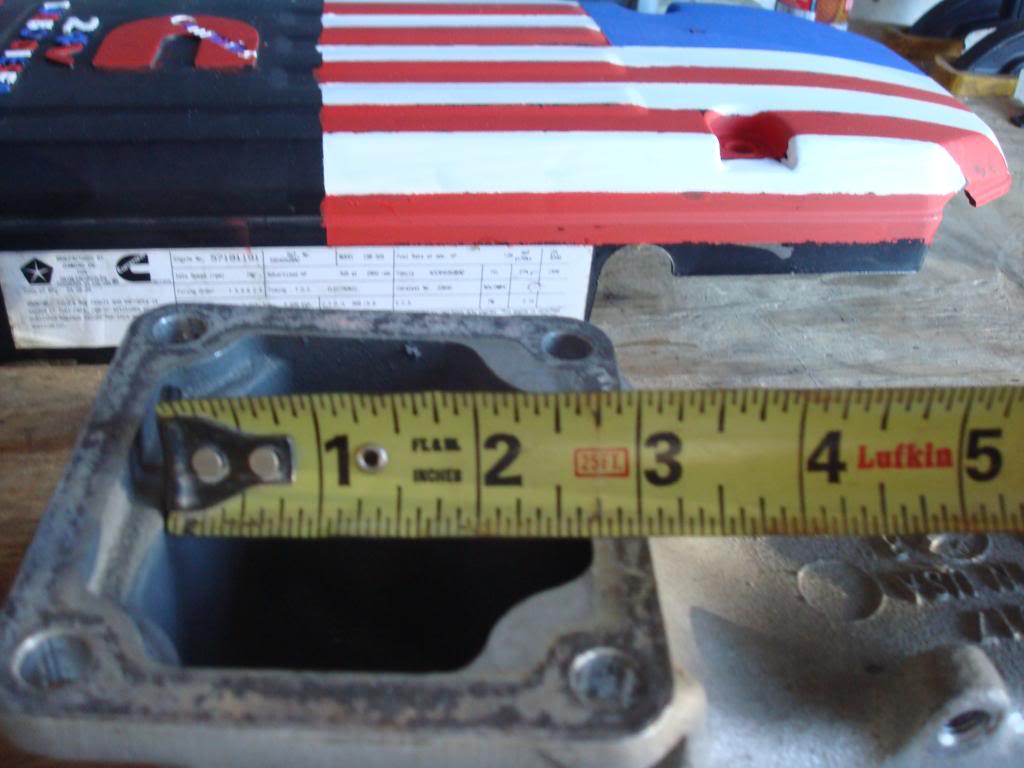

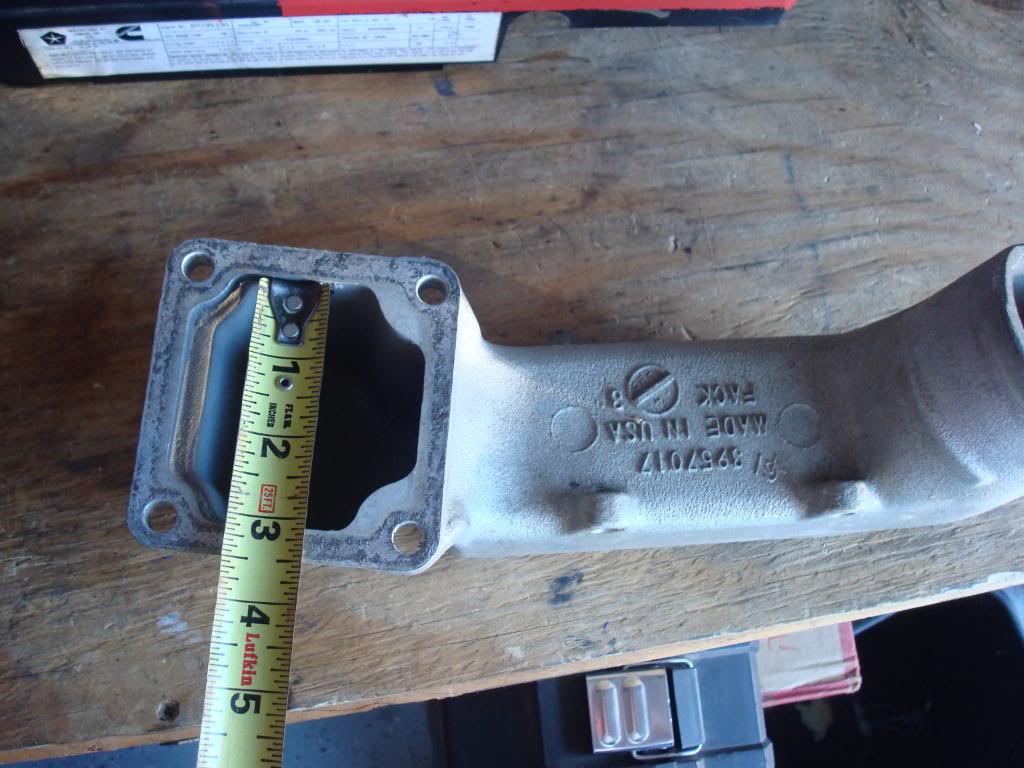

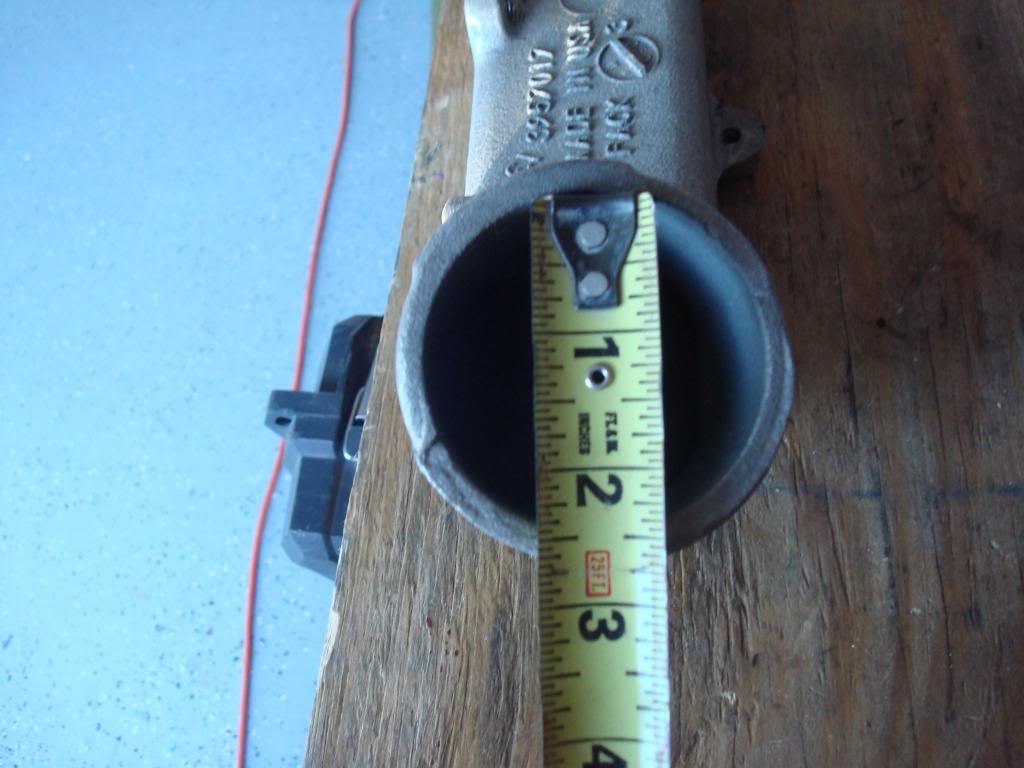

Name: DSC03164.jpg
Views: 595
Size: 99.5 KB

Name: DSC03165.jpg
Views: 573
Size: 71.6 KB

Name: DSC03166.jpg
Views: 578
Size: 66.1 KB

Name: DSC03167.jpg
Views: 573
Size: 72.2 KB

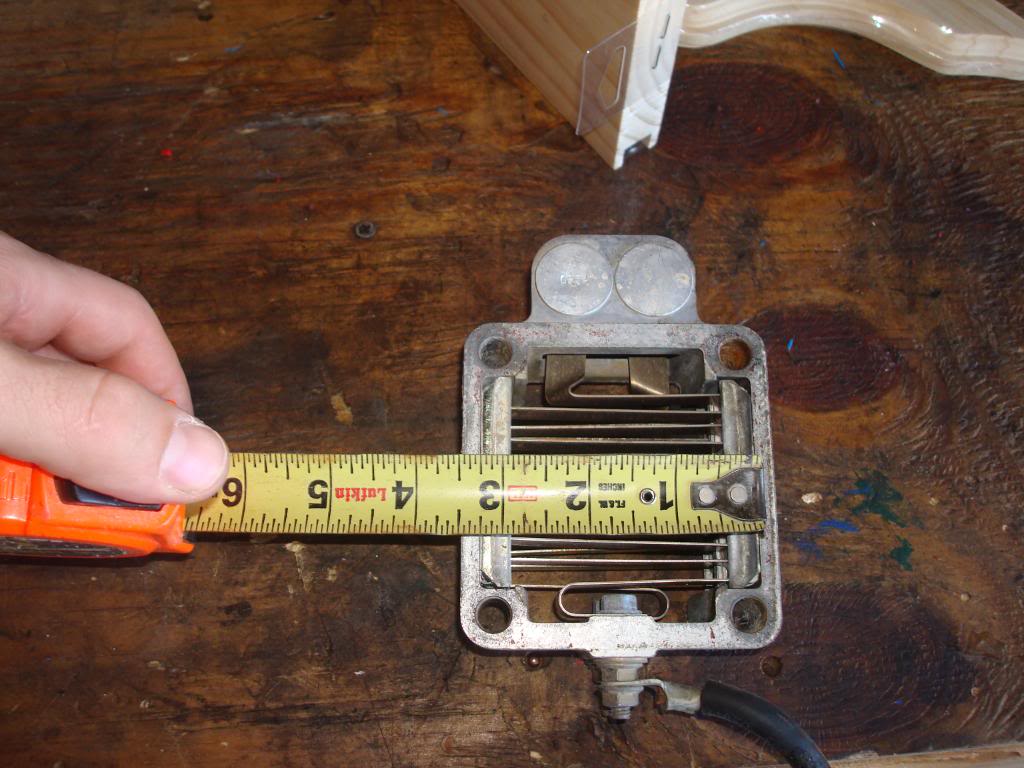

Just for giggles, I shot the grid heater too...
