Wiring/Connector Identification
I just got my wire harness for the 91.5 Cummins and need to identify a couple of things. This is the under hood harness that goes around the engine bay on the fenders. Its for the ECU, firewall connector, head lights, etc.

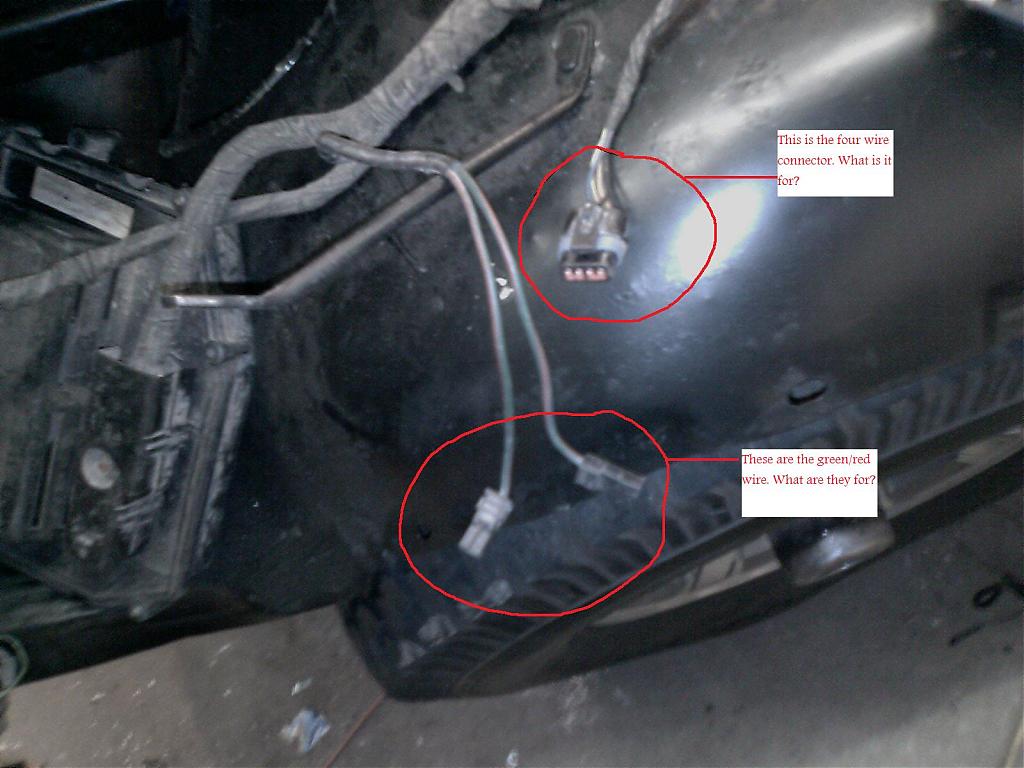

I have two green/red wires that come out near the ECU harness and have spade connectors on their ends. These wires are aprox 14 gauge and they have no tape or loom on them.
I have a 4 wire flat connector also near the ECU harness. It has a blue weather seal asket and its wire colors are:black, blue/red, green/red, biege/red

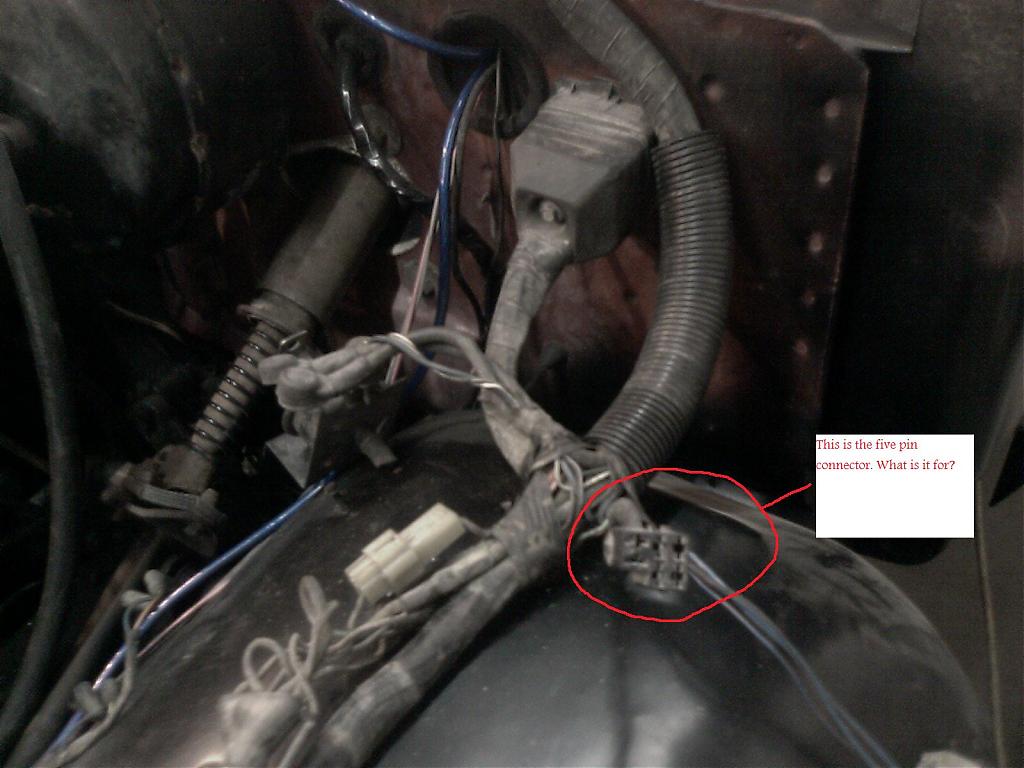

The last connector is a five wire funny shaped unit. It is near the drivers side firewall and comes out of the harsness right by grid heater wires. The wire colors on it are: blue (two thicker ones in the same slot), pink, light green, black/grey
If some one could identify what these wire are for and what they plug into that would be a great help. I have included a couple low quality pics to help. Thanks.
I have two green/red wires that come out near the ECU harness and have spade connectors on their ends. These wires are aprox 14 gauge and they have no tape or loom on them.
I have a 4 wire flat connector also near the ECU harness. It has a blue weather seal asket and its wire colors are:black, blue/red, green/red, biege/red
The last connector is a five wire funny shaped unit. It is near the drivers side firewall and comes out of the harsness right by grid heater wires. The wire colors on it are: blue (two thicker ones in the same slot), pink, light green, black/grey
If some one could identify what these wire are for and what they plug into that would be a great help. I have included a couple low quality pics to help. Thanks.
#5
Registered User
Thread Starter
Join Date: Jul 2006
Location: Lloydminster,AB Canada
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts
Any one know about the 4pin connector then? My truck has power inside the cab now but I have no ignition power. I thought maybe I was missing a relay. I have power locks, parklights, headlights, interior light all working but nothing that works off the ignition. So no heater, radio, turn sigals, starter, etc. Any ideas?
#6
Registered User
Join Date: Aug 2007
Location: RISING SUN MD
Posts: 214
Likes: 0
Received 0 Likes
on
0 Posts
the 4 pin i would think is the cruise and the 5 pin it looks like a relay goes there but i would look and make sure you have all the wires on the battery and make sure your grounds are good..
#7
Registered User
Join Date: Apr 2007
Location: Southern New Jersey
Posts: 4,062
Likes: 0
Received 0 Likes
on
0 Posts
The funny shaped one that is by itself in the first pic is the computer diagnostic port. For hooking a scanner up to read trouble codes and things like that.
Trending Topics
#8
Adminstrator-ess
As was said, the 4 wire plug is for the cruise servo.
The other plugs are for the horns.
