New Toy (Injector Tester)
#1
1st Generation Admin
Thread Starter
New Toy (Injector Tester)
Found this on Ebay ~ AG Precision M/N: NTM-400, http://www.fiptestbenches.com/inject...le-tester.html
(As found here ~ http://www.fiptestbenches.com).

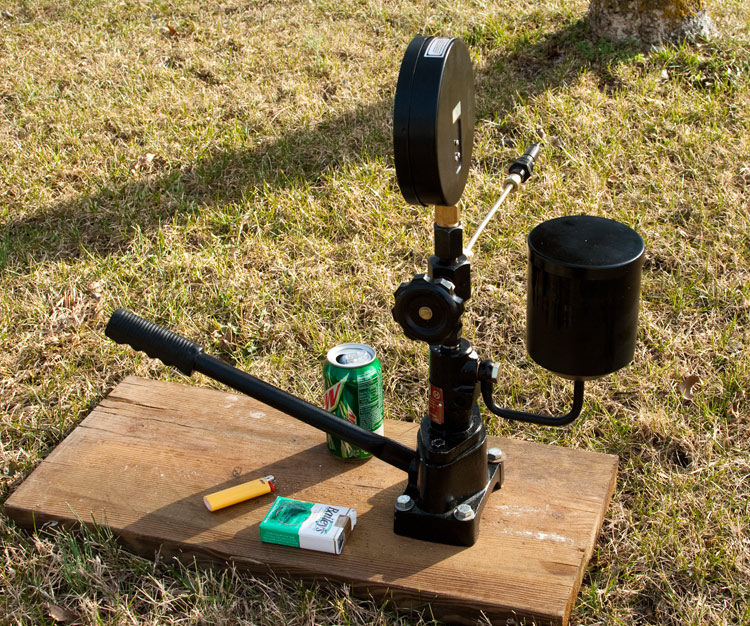

I mounted it to a scrap piece of 2 x 12. It's a rough but substantial cast base. The big valve under the gauge is used to isolate the gauge during certain tests otherwise it's used as a snubber to smooth pulsations while the injector is popping. (Soda and smokes are for size reference).
The reservoir holds about a quart and has a 5 micron filter. The lever works against what looks a lot like a roller-lifter in the base.

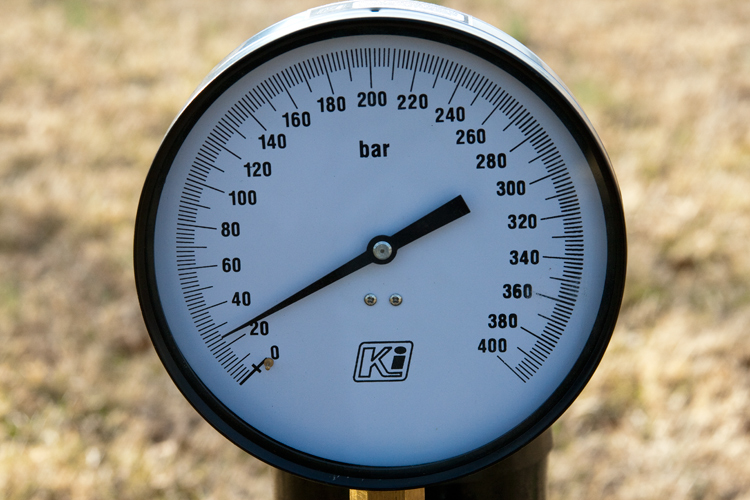

This one has a standard 150mm gauge (I wanted a larger one for it's finer resolution). There's a glycerin filled version available for extra.

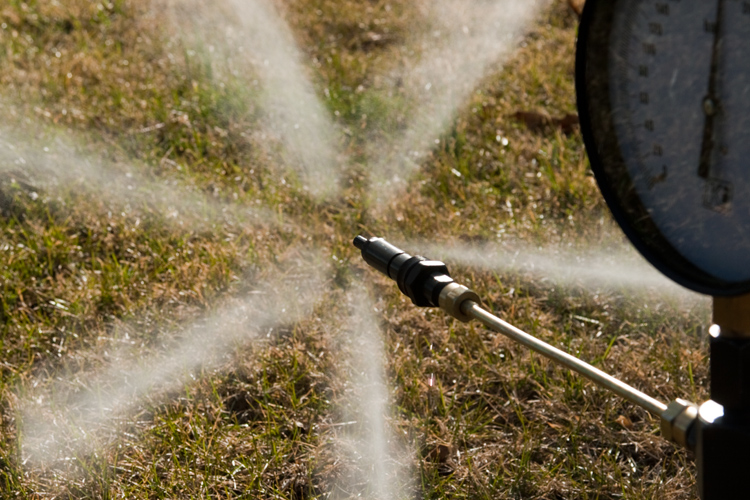

Here I'm playing with an old "stock" core. I can't remember who I got them from, but my intent was the cores. This one pops at 190BAR. Stock is 245 I believe.
As much as I'll use the thing, I feel it will serve my needs just fine.
I'm thinking I'll pull the 6x0.016"s in the truck and check them initially to see where they're at and for how much variance between each other . Then after picking a target POP pressure, set them all consistently to the same new figure.
We'll see . . . . .
(As found here ~ http://www.fiptestbenches.com).
I mounted it to a scrap piece of 2 x 12. It's a rough but substantial cast base. The big valve under the gauge is used to isolate the gauge during certain tests otherwise it's used as a snubber to smooth pulsations while the injector is popping. (Soda and smokes are for size reference).
The reservoir holds about a quart and has a 5 micron filter. The lever works against what looks a lot like a roller-lifter in the base.
This one has a standard 150mm gauge (I wanted a larger one for it's finer resolution). There's a glycerin filled version available for extra.
Here I'm playing with an old "stock" core. I can't remember who I got them from, but my intent was the cores. This one pops at 190BAR. Stock is 245 I believe.
As much as I'll use the thing, I feel it will serve my needs just fine.
I'm thinking I'll pull the 6x0.016"s in the truck and check them initially to see where they're at and for how much variance between each other . Then after picking a target POP pressure, set them all consistently to the same new figure.
We'll see . . . . .
Trending Topics
#9
Registered User
To set the opening or "pop" pressure, you shim the spring that is above the nozzle inside the injector. That's how much pressure it takes to overcome spring tension and lift the needle off of it's seat within the nozzle.
Bar is just another measurement of pressure. Just as PSI is. 1 bar = 14.5 psi
Bar is just another measurement of pressure. Just as PSI is. 1 bar = 14.5 psi
#10
Registered User
Join Date: Jan 2009
Location: Bountiful, Utah
Posts: 2,128
Likes: 0
Received 0 Likes
on
0 Posts
that would be nice to have! I think you should start chargin a small fee for us 1st gen guys to send our injectors to you to have them pop tested! I know it'd be a lot cheaper than what my local diesel shop wants to do that.
And I hope that doesn't kill your grass...
And I hope that doesn't kill your grass...
#11
1st Generation Admin
Thread Starter
Yeah, I may just bend a line to allow the injector to shine in a container. Thanks.
@ Crossy's son: What jimbo486 said. Plus, one can raise or lower the POP pressure by adjusting the thickness of the spring shim (washer).
@ Crossy's son: What jimbo486 said. Plus, one can raise or lower the POP pressure by adjusting the thickness of the spring shim (washer).
#12
Registered User
Join Date: Feb 2005
Location: Browns Valley CA
Posts: 763
Likes: 0
Received 0 Likes
on
0 Posts
There is also an adapter for doing 24v injectors available.i was fortunate enough to find someone getting out of the injector business and acquired several hundred 12v shims. i still have to make 24v shims on the lathe but once it's set up they go pretty fast and the length is pretty easy to control. On average .001 change in shim thickness is equal to just under 5 bar. My truck is pretty sensitive to pop off pressures so i check them whenever smoke levels just off idle go up. I imagine there is a sweet spot for the VE just like there is for the p-pump and VP. I have found that keeping them all within a 5 bar spread usually helps the idle smooth out.
#13
1st Generation Admin
Thread Starter
Ron, is there a generally good compromise with raising or lowering the POP pressure. Any recommendations over/under stock and why?
Thanks,
Thanks,
#14
Registered User
Join Date: Feb 2005
Location: Browns Valley CA
Posts: 763
Likes: 0
Received 0 Likes
on
0 Posts
Sorry, I'm not much help with VE stuff.
On a side note, the piston in my tester sticks if i let it sit for a long time. I don't use injector test fluid, just diesel. It helped mine to mix some 2 stroke oil in with the diesel( i have a gallon can i keep the fuel for the tester in). Just thought I'd mention that.
