I actually thought of that but my concern was that there seems to be more movement on this new spring design and I was nervous about just having a little over an inch of free play so I got it rebuilt to better specs.
I upgraded the spline shaft and slip yoke. It is much larger in design compared to the stock drive shaft that was on there. I used the original shaft but replaced the cv joints and ball assembly. The new spline shaft and slip yoke welded onto the existing shaft has a travel distance of 3 inches now.
Here is a pic of the completed shaft.........

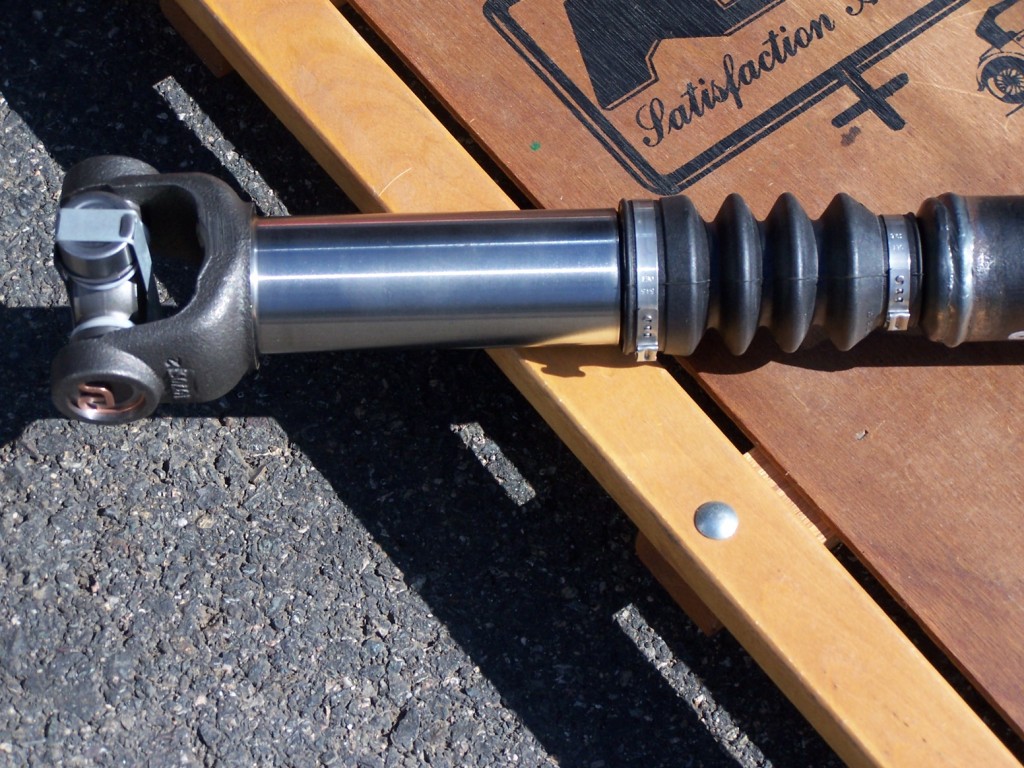

Here is a closer shot of the new end welded up. The slip yoke was complimented with a rubber boot and sealed with clamps, making it maintenance free. The rubber boot and slip joint design is similar to the TJ jeep style except quite larger. As you can see the diameter of the slip yoke and back end of the original shaft are the same size now !
A spicer conversion joint was installed to match up with my dana 60.
Ideally , there should be 3 degrees on the shaft angle. I don't know what the stock angle was with the sagged front springs but I now sit at 18 degrees. Turning the shaft by hand didn't create any binding issues. I locked the hubs and run the front end after the install today and there doesn't seem to be any issues. Works great.

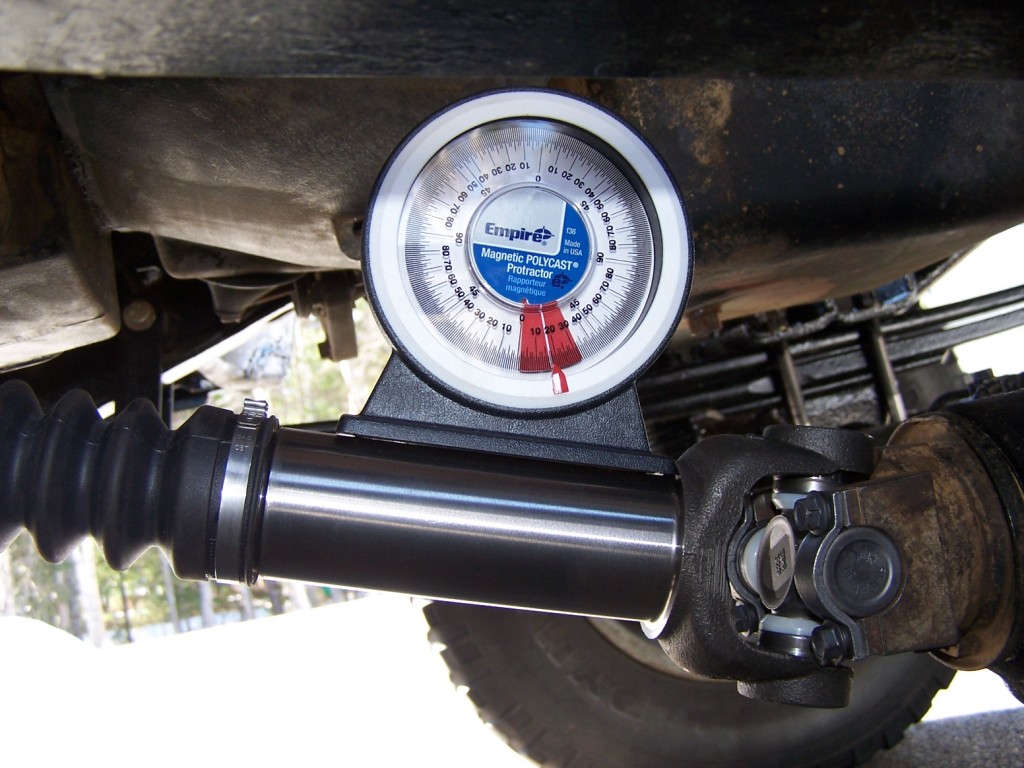

Here is a pic of the final install. This upgrade is maintenance free, never needing grease to the slip joint, cv's only and much stronger.
I upgraded the spline shaft and slip yoke. It is much larger in design compared to the stock drive shaft that was on there. I used the original shaft but replaced the cv joints and ball assembly. The new spline shaft and slip yoke welded onto the existing shaft has a travel distance of 3 inches now.
Here is a pic of the completed shaft.........
Here is a closer shot of the new end welded up. The slip yoke was complimented with a rubber boot and sealed with clamps, making it maintenance free. The rubber boot and slip joint design is similar to the TJ jeep style except quite larger. As you can see the diameter of the slip yoke and back end of the original shaft are the same size now !
A spicer conversion joint was installed to match up with my dana 60.
Ideally , there should be 3 degrees on the shaft angle. I don't know what the stock angle was with the sagged front springs but I now sit at 18 degrees. Turning the shaft by hand didn't create any binding issues. I locked the hubs and run the front end after the install today and there doesn't seem to be any issues. Works great.
Here is a pic of the final install. This upgrade is maintenance free, never needing grease to the slip joint, cv's only and much stronger.
#32
Registered User
And I may have all of that mixed up.
#34
Registered User
Thread Starter
Join Date: Nov 2010
Location: New Brunswick , Canada
Posts: 70
Likes: 0
Received 0 Likes
on
0 Posts
From what I read on Pirate4x4, you need the transfer case yoke and the pinion yoke within 3* of each other, the shaft angle is a different. Meaning, if the transfer case has 21*, the pinion yoke needs between 18-24*... Or is it 20-22*? Something like that.
And I may have all of that mixed up.
And I may have all of that mixed up.
My transfer case flange and my pinion yoke are both at 90 degrees. There is no variation in the two. What I was meaning by the 3 degree shaft angle was the 3 degree angle reflected onto the joint itself. They claim that when a joint runs past the 3 degree mark you start to loose service life. Since my driveshaft is at 18 degrees it reflects the angle on the joint, therefore the life span of my conversion joint is cut back . I should be fine though because it is my front shaft and it's not like it spins all the time. But I think you may be right on the 3 degree variation between the flange and yoke.
