Alternator problems
So like the title says my alternator isn't charging. I'm showing 12.2v at idle. I've swapped the relay and got no change. I checked that I'm getting a signal from the PCM to the alt and it was not. My AC is still working correctly so that rules out the CPS. Im guessing after tracing the wires that the PCM controls the alt relay by opening and closing the ground. I grounded the relay and got power on the two small lugs at the alternator but still only show 12.2v at the battery and charger lug on the alternator.
The parts store tested the Alt and say it's good.
I bought the transpro internal regulator for the alternator but before I try that I wanted to see if anyone had any other ideas on where I should look.
Any ideas??
The parts store tested the Alt and say it's good.
I bought the transpro internal regulator for the alternator but before I try that I wanted to see if anyone had any other ideas on where I should look.
Any ideas??
#2
Registered User
Usually the first thing to fail in the PCM is the regulator. Many have installed an external regulator, me included. If the CPS fails, it will not close the auto shutdown relay causing the alternator to go full output. You can rewire the relay directly onto the ignition switch and stop any future alternator over volt problem.
#3
Registered User
Thread Starter
Join Date: Dec 2008
Posts: 1,751
Likes: 0
Received 0 Likes
on
0 Posts
I'm not having an over charge issue, I'm having a no charge issue. I'm not sure if I'm understanding the working correctly either. Does the PCM operate the relay by completing the ground?
#4
Registered User
My mistake, yes the PCM ground the auto shut down relay. So just run that wire to ground instead. The regulator also controls through ground via the PCM. It goes ignition feed, relay, alternator, PCM regulator, to ground. You need to bypass the PCM part. Easy, just cut the wire that goes back to the PCM and run it to your external regulator, the other wire takes power from the relay. https://www.dieseltruckresource.com/...-101-a-307266/
#5
Registered User

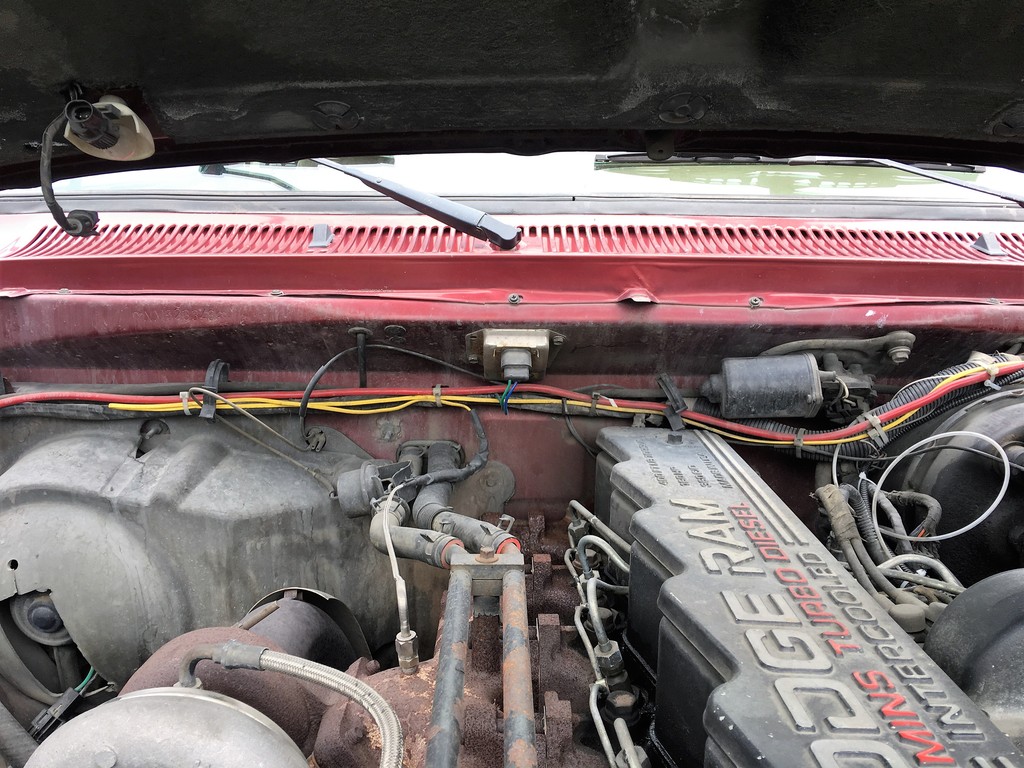

In the wiring harness that runs across the top of the firewall, find the dark green wire and the dark green with orange stripe wire. It is the dark green wire you want to cut. Stow the end that runs back to the PCM. The end that goes to the alternator connect to your regulator. Tap into (don't cut) the dark green with orange strip for power (or sense) for your regulator.
Cut the dark blue with yellow stripe wire near the auto shut down relay and connect the relay end to ground. Stow the other end.
Cut the dark blue with yellow stripe wire near the auto shut down relay and connect the relay end to ground. Stow the other end.
#7
Registered User
Any problems I've had with the alternator that wasn't the alternator itself proved to be wire harness problems. One was a broken wire going to the ASD relay. Another was a connector problem between the alternator and the PCM.
Trending Topics
#8
Registered User
Thread Starter
Join Date: Dec 2008
Posts: 1,751
Likes: 0
Received 0 Likes
on
0 Posts
Internal regulator and grounding out the ASD seems to have fixed the issue.
J_martin, I had tested and traced all the corresponding wires as best I knew how. That is how I arrived at the fact that the PCM was not grounding out the ASD as designed.
J_martin, I had tested and traced all the corresponding wires as best I knew how. That is how I arrived at the fact that the PCM was not grounding out the ASD as designed.
#10
Registered User
#12
Registered User
There's pros and cons to the computer. Modern engines with computer supervised mix, timing, and often even acceleration live a whole lot longer than their grandpas. Part of it is more precise manufacturing, but a great deal of it is that the cylinders are not washed with liquid gasoline at every cold start. (the choke routine). The precise supervision also helps, as the engine is run at peak timing without pre-ignition, so it doesn't suffer from either knock damage or overheated exhaust from late timing damage.
Back in the 60's, getting 100,000 out of an engine was cause for bragging and celebration. Now 200,000 - 400,000 is met with a yawn. That's on consumer engines. Our CTD's are actually industrial engines.
If all the parameters required to meet emissions were manually programmed and hard wired, it'd be a nightmare to diagnose. The computer can usually tell you which component is failing, or at least the parameter (mix, etc) that is out of spec.
Back in the 60's, getting 100,000 out of an engine was cause for bragging and celebration. Now 200,000 - 400,000 is met with a yawn. That's on consumer engines. Our CTD's are actually industrial engines.
If all the parameters required to meet emissions were manually programmed and hard wired, it'd be a nightmare to diagnose. The computer can usually tell you which component is failing, or at least the parameter (mix, etc) that is out of spec.
#13
Registered User
There's pros and cons to the computer. Modern engines with computer supervised mix, timing, and often even acceleration live a whole lot longer than their grandpas. Part of it is more precise manufacturing, but a great deal of it is that the cylinders are not washed with liquid gasoline at every cold start. (the choke routine). The precise supervision also helps, as the engine is run at peak timing without pre-ignition, so it doesn't suffer from either knock damage or overheated exhaust from late timing damage.
Back in the 60's, getting 100,000 out of an engine was cause for bragging and celebration. Now 200,000 - 400,000 is met with a yawn. That's on consumer engines. Our CTD's are actually industrial engines.
If all the parameters required to meet emissions were manually programmed and hard wired, it'd be a nightmare to diagnose. The computer can usually tell you which component is failing, or at least the parameter (mix, etc) that is out of spec.
Back in the 60's, getting 100,000 out of an engine was cause for bragging and celebration. Now 200,000 - 400,000 is met with a yawn. That's on consumer engines. Our CTD's are actually industrial engines.
If all the parameters required to meet emissions were manually programmed and hard wired, it'd be a nightmare to diagnose. The computer can usually tell you which component is failing, or at least the parameter (mix, etc) that is out of spec.
https://ericpetersautos.com/2017/06/...jihad-expands/
#14
Administrator
Those emissions regulations are now being used to effectively outlaw diesels.
https://ericpetersautos.com/2017/06/...jihad-expands/
https://ericpetersautos.com/2017/06/...jihad-expands/
http://forums.tdiclub.com/showthread.php?t=448053
#15
Registered User
Thread Starter
Join Date: Dec 2008
Posts: 1,751
Likes: 0
Received 0 Likes
on
0 Posts
It will be Saturday/Sunday before I can look at it again. I'm in Alabama now on vacation. I realized shortly before I left that I had installed the internal regulator incorrectly. I need to fix that and see where I'm at.
