I installed my Kenwood DNX 6960 the other night. Aside from being pretty cold, the install went smoothly and took 6 Racer 5 Pale Ales. Along with it, I installed the bluetooth microphone, a new sirius tuner, steering wheel control module and the navigation antenna. I apologize for not taking better/more pics, but it really is pretty self explanatory. All parts were purchased from Sonic Electronix, who had the best price by far (a few hundred bucks)

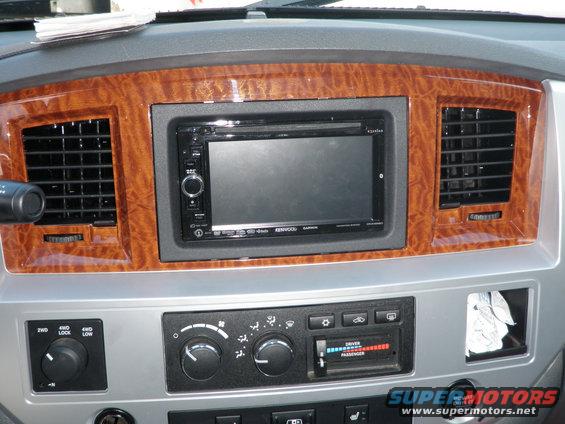

Here it is installed with an American International install kit and the requisite navigation bezel. Its not as clean as i would like, there are some gaps around the install kit which bug me.





I bench topped most of the wiring. made soldering everything much easier sitting at the kitchen table where it was warm. The wiring harness made it quite simple once i figured out all the wiring colors and what I didnt or did need. I used a PAC Audio Can bus adapter C2R-CHY and SWI-JACK. This eliminated the need for the SWI-CAN and those two basically just plug together. I wired the head unit into the stock infiniti amp for now, until I can afford the Focal speakers i want.

Of note, i ground the parking wire to a ground hidden behind the lower dash panel (see pics). Once you remove the plastic piece, there is a splatter shield of sorts, that can be removed. This makes installing all wiring much easier. i can now use DVD and all Nav functions while driving.

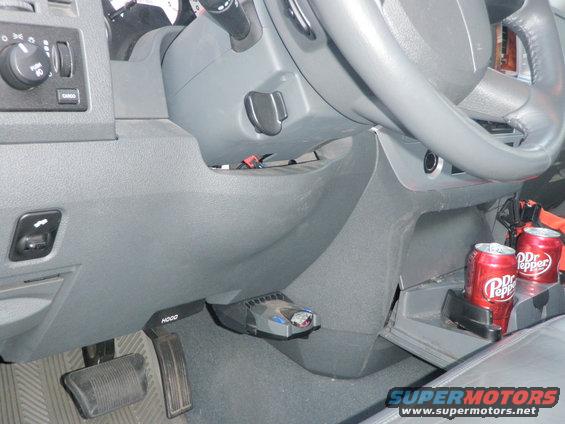

Look at the little red thing behind the dash piece above the brake controller

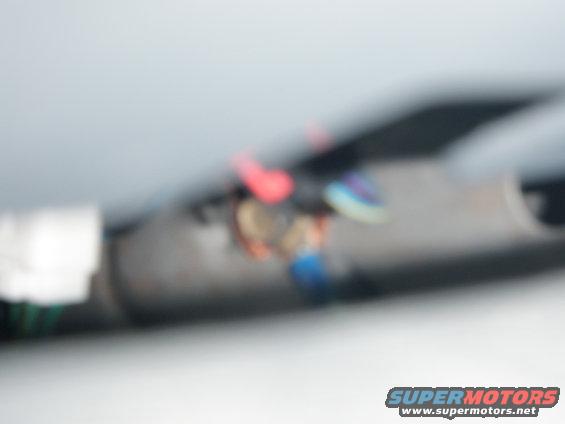

This is a close up but lousy pic of the ground wiring location. It required a 10mm wrench


For the sirius tuner, i removed the factory unit (needs a 10mm wrench), and used velcro to mount the new tuner in place. By mounting it in the stock location I was able to use the factory antenna. **** You need to pry the little red cap off the factory antenna plug, which gives you access to a tab that locks the antenna plug into the pea green colored plastic piece. Once removed from the plastic piece, just plug the stock antenna into the sirius tuner.

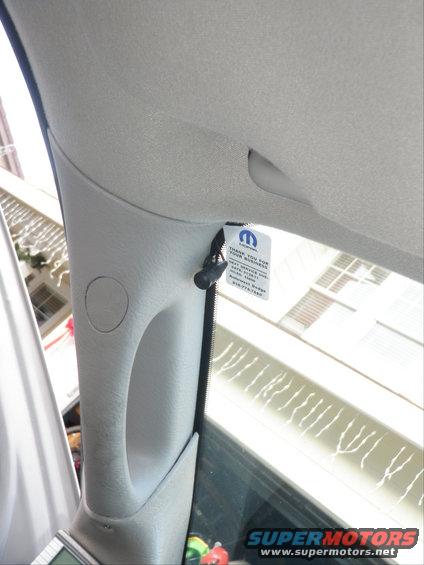

I put the blue tooth mic here, again requiring 10 mm wrench for removal of the a pillar. Go ahead and remove both pillars, so the front dash piece can be pulled up, giving access to the speakers and top of the dash. The wife reports good sound from this location

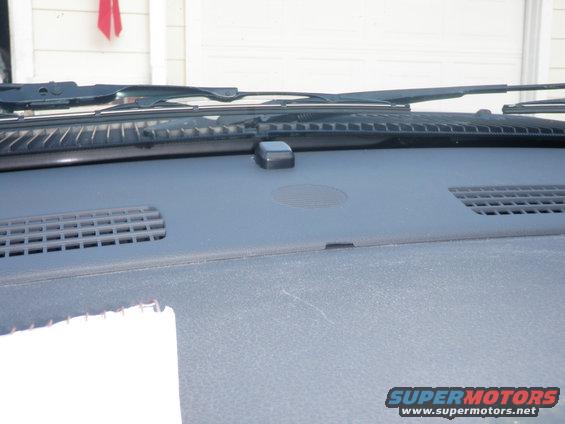

with the dash piece up, I fished the nav antenna wire down. Its a little tight, but i used some household 3 wire romic to fish it down through a hole near the center speaker. you can see in the pic my one (and only) screw up. I filed down the edge of the dash piece for the antenna wire to sit in. This was one of the last things I did, and was apparently 6 beers into this. I filed the wrong side to start. Luckily, you dont really see it when its mounted. i put a similar file mark on the other side to route the wire through. i trimmed the sticker magnet down so you dont see it, just the antenna





Final thoughts: Really easy, but i do a lot of fab/auto stuff and have installed a few stereos. This was my first double din, and it took some dumb questions on my part to figure out how it mounted.
