I already have the three gauges in my sig on a triple pod pillar. I was thinking of maybe adding 3 more gauges (tranny temp., engine oil temp, and rear differential temp.). Anyone got pics of the triple dash pod? Or anywhere else? Just would like to see how it'll look. Thanks!



I have a 60 psi autometer pro-comp ultralight hidden in my ash tray! Flip it down to race or tune, Flip it up and your a sleeper...other than dual 5in lakers that is. LOL
Don't think this will help you with three gauges though!

-Alex



sorry i dont have the final product shown, pics are on my home computer.

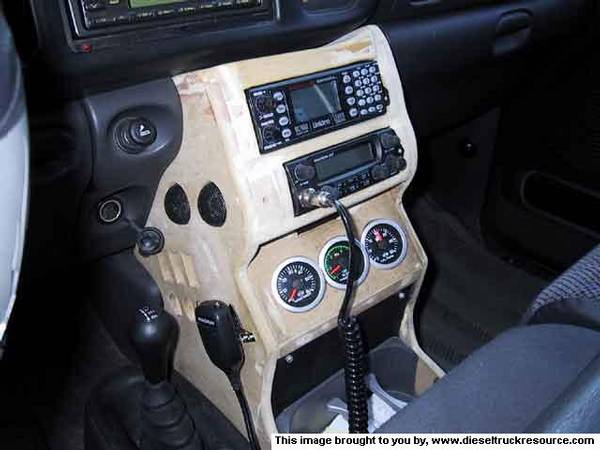

i custom built this pod from fiberglass and bondo. holds my 2-5/8" gauges and looks better than the angle iron bolted to the dash with wires everywhere.



i like how you did that getblown5.9! i might think of doing this myslef now.



[IMG][/IMG]

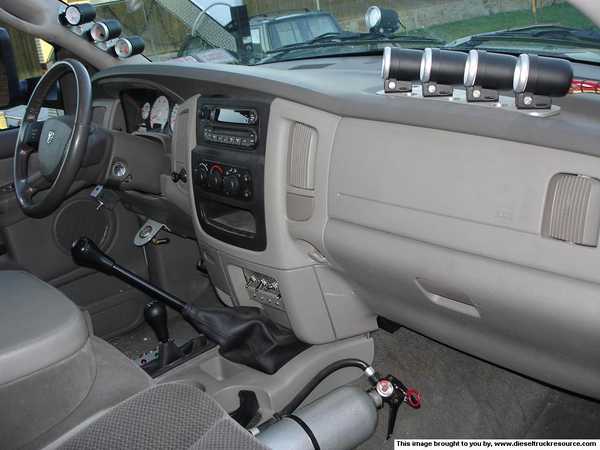

These are not mine... but definately one of a kind. Fellow N.Tx DTR member.... XLR8R... on his 05.


RJ

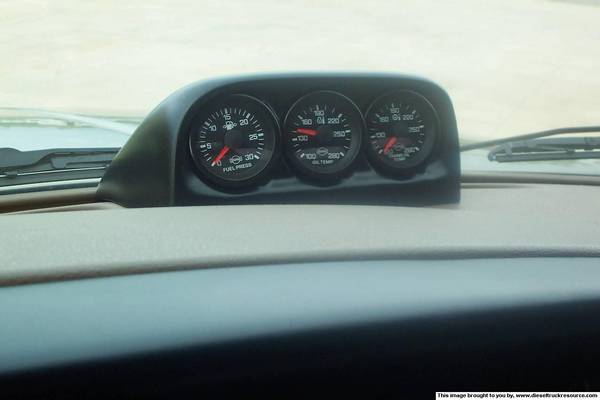

This one is mine!
-Fuel Pressure
-Primary Boost, now... (Oil Temp in the pic)
-Differential Temp


RJ



Mine...........



What are all them gauges monitoring. I have a hard time looking at the 3 I have.



Intake boost, fuel pressure, EGT, oil pressure, oil temp, rail pressure, tranny temp, rear diff temp, line-loc pressure; not shown are pre-CAC boost, intake manifold air temp, H2O/CH3OH injection pressure, pre-CAC air temp, "dyno" boost, TIP gauge and water jacket pressure (soon to come)... think that's all of them?



that is alot to look at.



Mike, Need to add a 'flexometer' on those sexy traction bars you made!

RJ



Tell me about it!

Had 6 eyes watching them at the last dyno and still wasn't enough... hoping to get a video cam in the back seat so we can capture everything frame-by-frame next time.



Hmm - good idea... let's see, Cat 5 cable from the dual strain gauges on the bars to control the electrodes on the SOTP meter... soon to be available as an accessory kit!
