Built 47rh=whole new truck
Well I finally got my 47rh lockup tranny in my truck this last weekend after about a year of gathering parts and money to get it built. I finally retired the ol stock A518 that I had put through heck since day one of when I got the truck. That little tranny has impressed me though. I had this 47rh built by a newer and smaller local diesel shop that I deal with a lot called Outlaw Diesel. The Owner/builder has built many trannys, some holding over 1000hp, including his own p pumped 24 valve. I got his stage 3 build with a billet input shaft, billet triple disk 2100 stall converter (has a company build them for him, but unsure of the name) billet flexplate (my stock one was cracked, and I needed a 2nd gen one anyway), and other billet internal goodies. His own custom valve body with added/upgraded clutches, 5 pinion steel planetary instead of 3 pinion aluminum one, and something about a different accumulator, and I'm sure there is some more that I'm not 100% sure about. I just know he knows his stuff and does a crazy mean build.

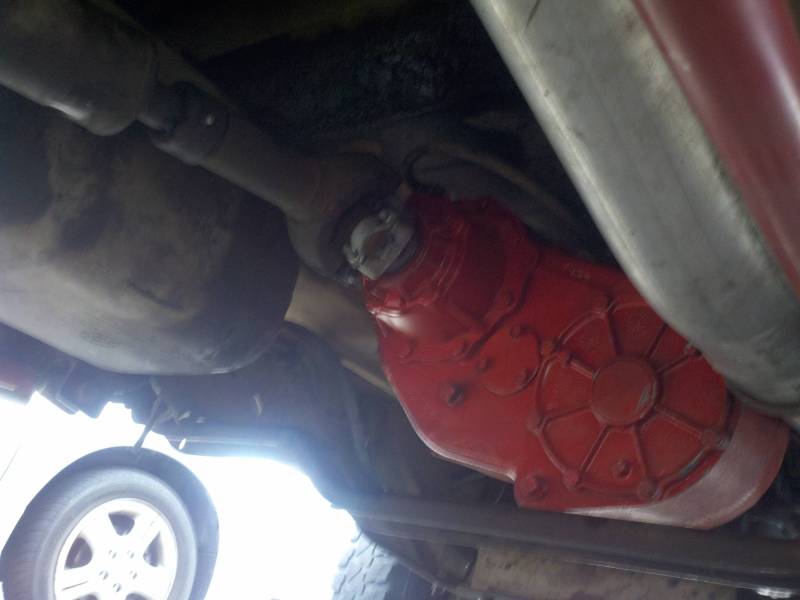

I figured while I had the truck down I might as well do some preventive maintenance and some small fixes so i went through my NP205 transfer case and put in new bearings and seals. Everything seemed to look good and normal inside but I did have a few questionable bearings.
I also changed my leaking rear main seal while I had it all apart as well, and it was a good thing as the old seal was falling apart. I also cleaned everything up and added some paint.

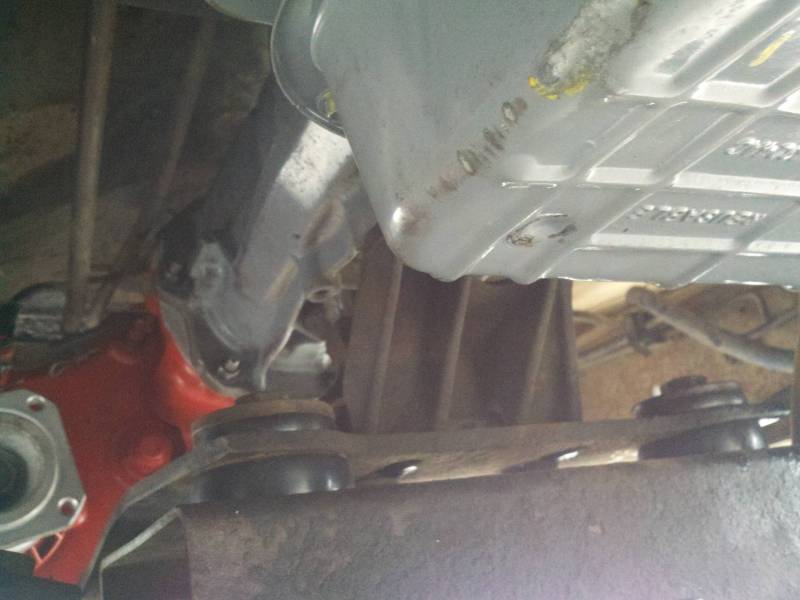

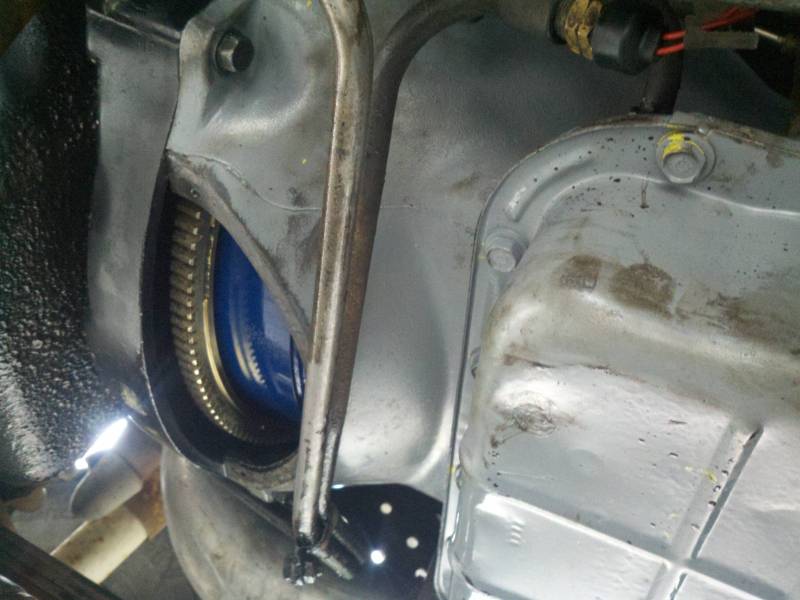

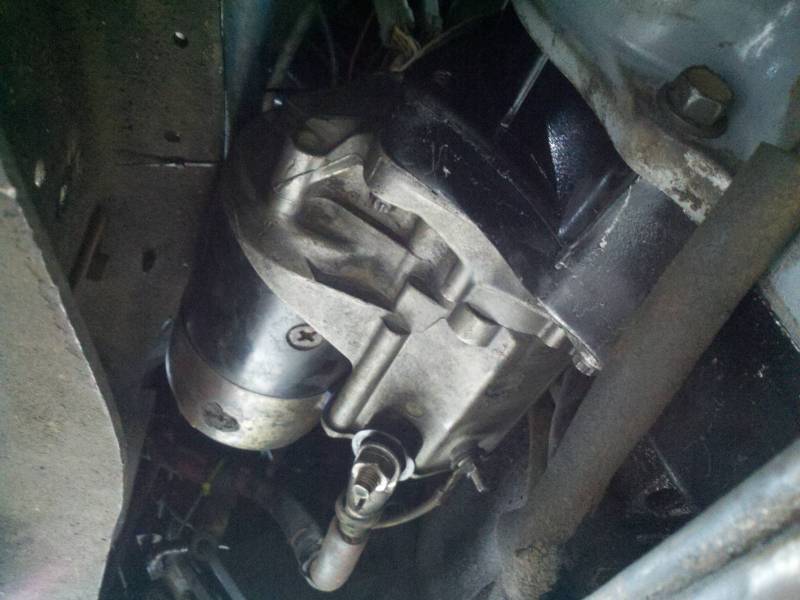

We got the new trans all mounted up with the 2nd gen adapter plate and starter

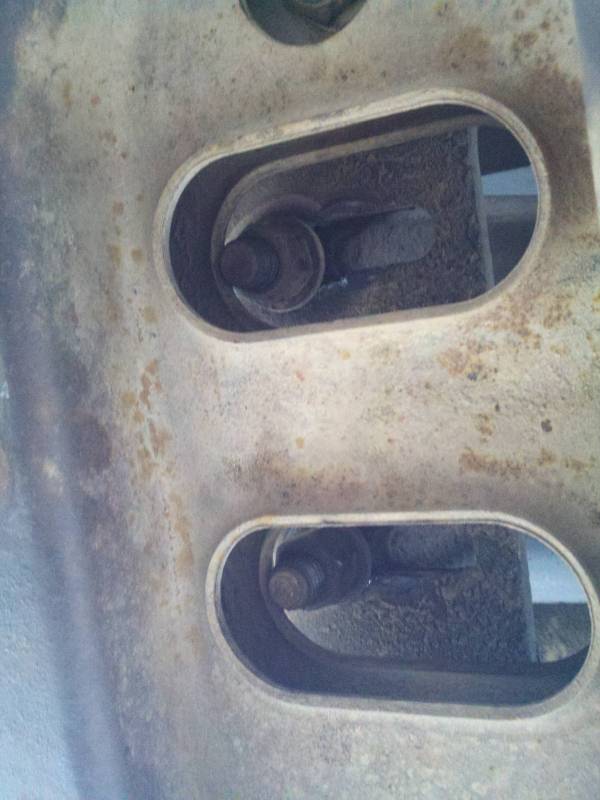

but since the adapter plate moves everything back about another inch, we had to get the torch out to notch the trans mount holes in the crossmember.
also added some poly trans mount bushings while I had it apart, my old ones were rotting out.
The rear driveshaft was barely short enough on my reg cab, and i haven't hooked the front driveshaft up or even tried to but I've heard it may be too short.
I used my stock cooler lines, and pulled the shifter linakage and tv cable piece off my 518 and put it on the rh.
Wired up my lockup switch on the trans and boy does it move now. Night and day difference between this 47rh and the ol 518. I can lock it up 2nd through OD and it pulls extremely hard when I lock it up if I have my boost/rpms up. I'm super happy with the swap and would recommend it to anyone.
All you need is:
2nd gen starter
2nd gen adapter plate
2nd gen flexplate
47rh transmission (94-95 auto trans)
a little patience, and something to cut a notch in the crossmember.
I used advice and the previous threads on converting to a 47rh in the stickys and found them helpful, but its fairly straight forward.
I'm really curious what my dyno numbers are now or what they will be after I get a bigger turbo, injectors, and my 14mm pump I just finished building on. Its crazy how big of a difference this trans really made, I now believe why people say tranny work will make the biggest difference in these trucks.
I figured while I had the truck down I might as well do some preventive maintenance and some small fixes so i went through my NP205 transfer case and put in new bearings and seals. Everything seemed to look good and normal inside but I did have a few questionable bearings.
I also changed my leaking rear main seal while I had it all apart as well, and it was a good thing as the old seal was falling apart. I also cleaned everything up and added some paint.
We got the new trans all mounted up with the 2nd gen adapter plate and starter
but since the adapter plate moves everything back about another inch, we had to get the torch out to notch the trans mount holes in the crossmember.
also added some poly trans mount bushings while I had it apart, my old ones were rotting out.
The rear driveshaft was barely short enough on my reg cab, and i haven't hooked the front driveshaft up or even tried to but I've heard it may be too short.
I used my stock cooler lines, and pulled the shifter linakage and tv cable piece off my 518 and put it on the rh.
Wired up my lockup switch on the trans and boy does it move now. Night and day difference between this 47rh and the ol 518. I can lock it up 2nd through OD and it pulls extremely hard when I lock it up if I have my boost/rpms up. I'm super happy with the swap and would recommend it to anyone.
All you need is:
2nd gen starter
2nd gen adapter plate
2nd gen flexplate
47rh transmission (94-95 auto trans)
a little patience, and something to cut a notch in the crossmember.
I used advice and the previous threads on converting to a 47rh in the stickys and found them helpful, but its fairly straight forward.
I'm really curious what my dyno numbers are now or what they will be after I get a bigger turbo, injectors, and my 14mm pump I just finished building on. Its crazy how big of a difference this trans really made, I now believe why people say tranny work will make the biggest difference in these trucks.
