Hi, I pretty much got most of my gremlins worked out in my rig. What I would like to have working is the 4X4 indication lamp ( possible female use). On the 205 I had a closure on the switch when engaged, bulb good. Where does this circuit start from and what connectors may be in trouble? I'm guessing Batt is sent to the transfer case and closed and goes to the bulb with a simple ground? Too easy or does it get complicated, like sending Batt through the bulb and grounding the NO switch on the transfere case switch? Thanks, Artie



Hopefully this helps.

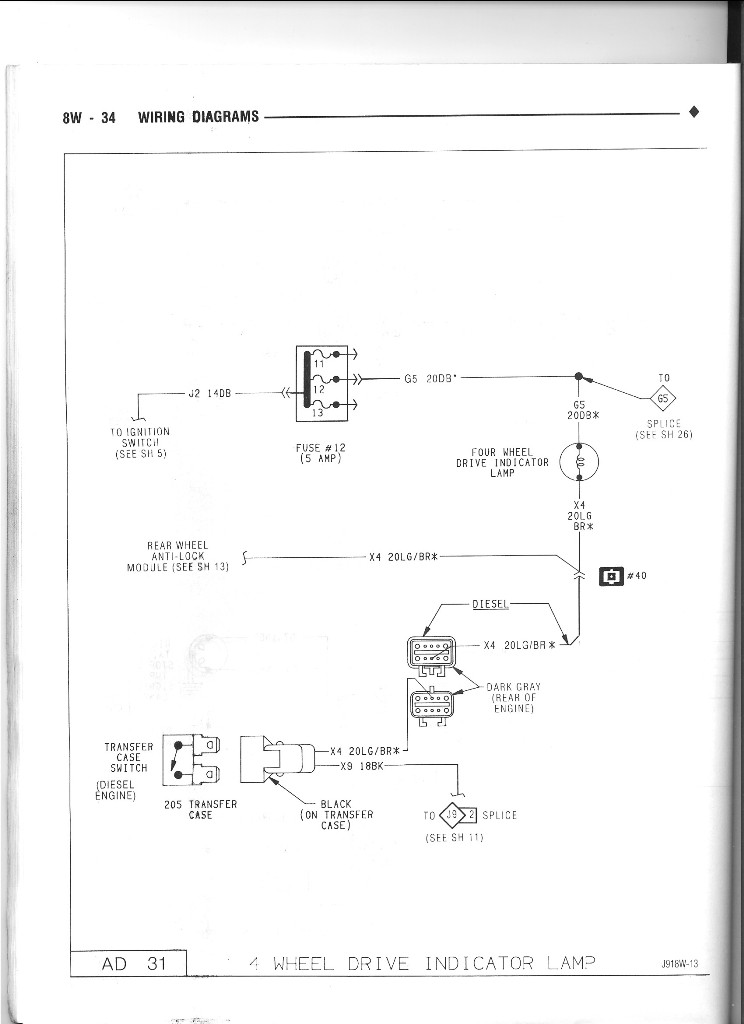

These schematics are in the Sticky.



Thanks, Cootz, I looked up more info in the stickys. The 205's switch, also, does something with the RWAL module. I would assume that when engaged, the RWAL is disabled? Would this be a TRUE statement? Thanks for the direction, Artie



Anyone have a part number for the actual indicator light?



The bulb is a 158.
