I installed a new set of Kool-Vue towing mirrors this past week and thought I would share a few tips of how to install them.

Step One

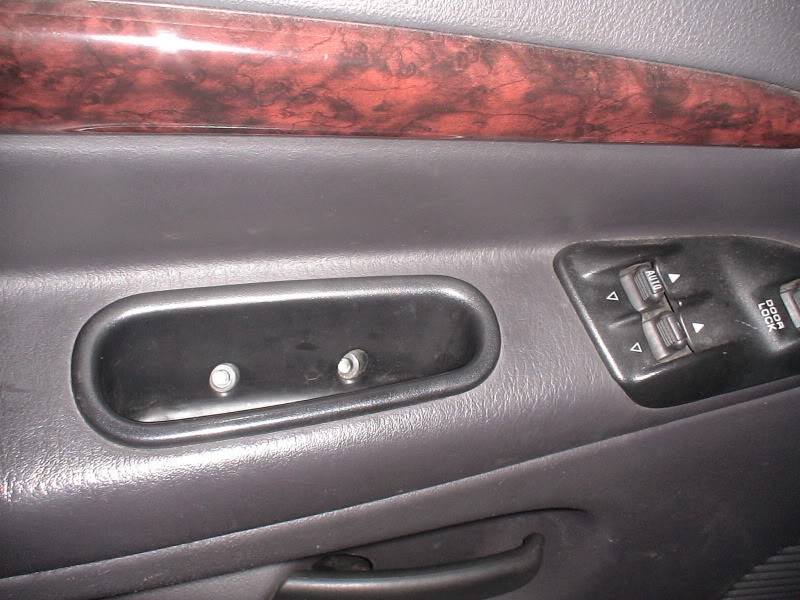

Unscrew the 3 phillips screws holding the door panel.

Screw 1


Scew 2 & 3



Step Two
Pry out the 13 door panel clips to free the panel. I used a big screw driver and long needle nose pliers to free the clips. None broke!!




Step Three

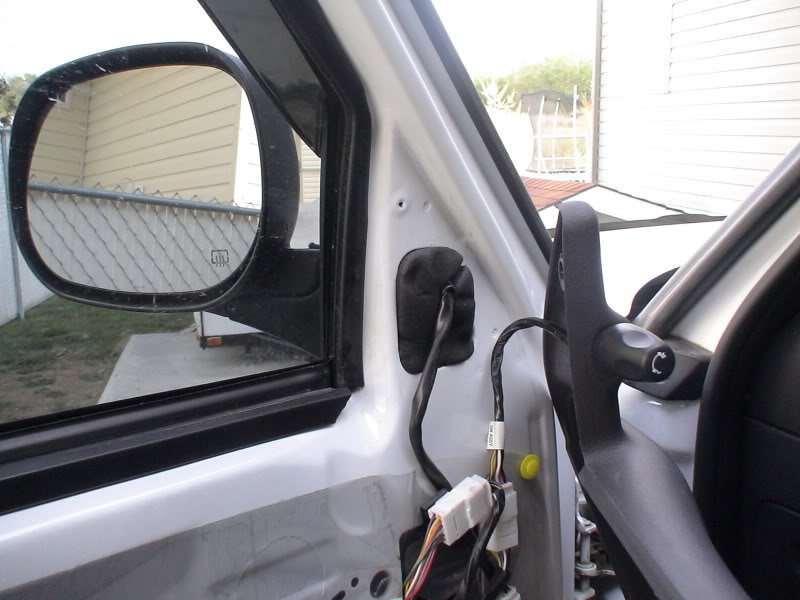

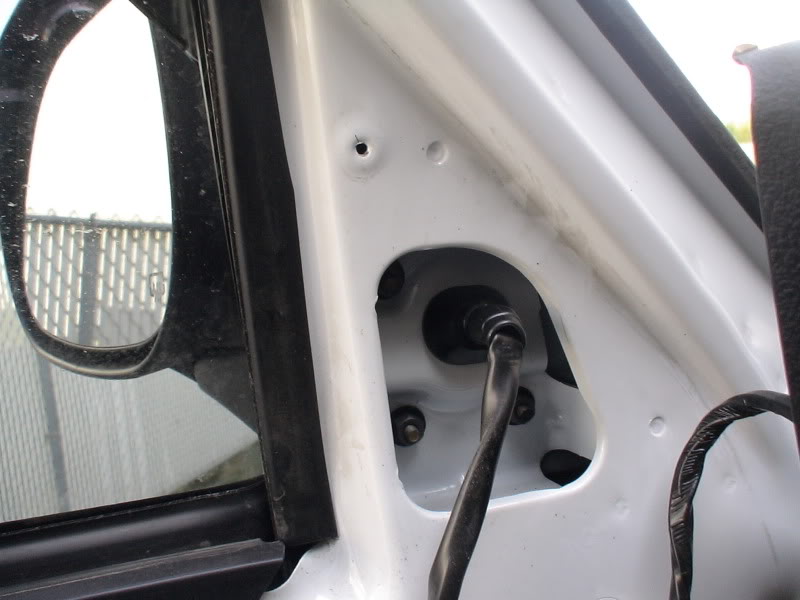

Remove the foam insulation stuffed in the mounting hole.Unscrew the three 10mm nuts on the factory mirror assembly. Disconnect the mirrors wiring harness, pop out the wire grommet and remove mirror.





Step Four
Fitting the Kool-Vue Mirror to the door.

Heat the wire grommet with a hair dryer to help with installing it in the door. With it warm it slips right into the hole.

Be EXTREMELY CAREFUL on how you route the wiring in the mirror assembly before tightening the mirror to the door. You will know if your wiring harness is in the way as the mounting studs on the mirror will appear to be too short. I pinched my driver side mirror wire bundle and had to do a minor repair. It also blew a fuse when testing. The fuse that went was the IOD fuse in the fuse panel located inside the truck. When it blew the radio, interior lights and power mirrors quit working. IMO this is one of the disadvantages with these mirrors. Kool-Vue could have done a lot better with routing of the wiring harness in the mirror assembly.


Step Five

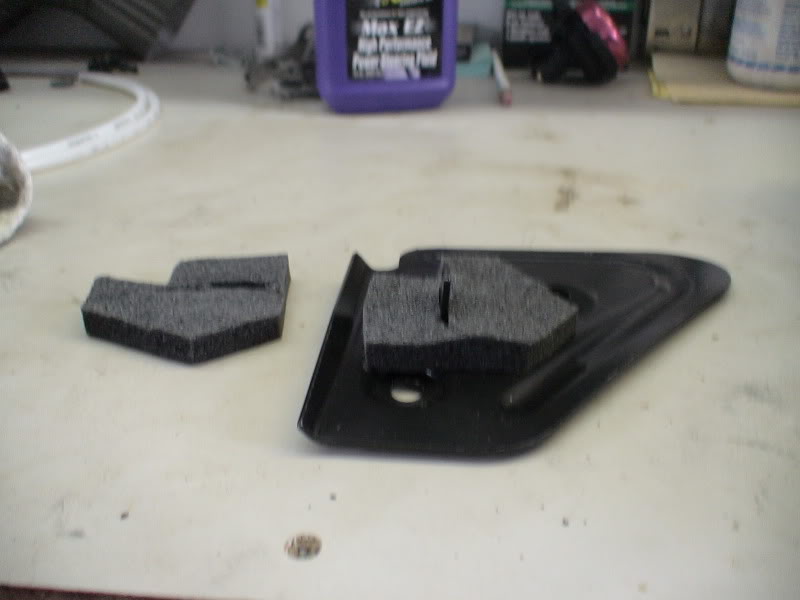

I re-used the foam insulation to fill the hole. You will need to drill three holes in the insulation so the mounting studs can fit through.


If re-using the factory foam insulation you will need to trim down the foam backing on the new mounting plate. I trimmed off about half the foam.



Step Six

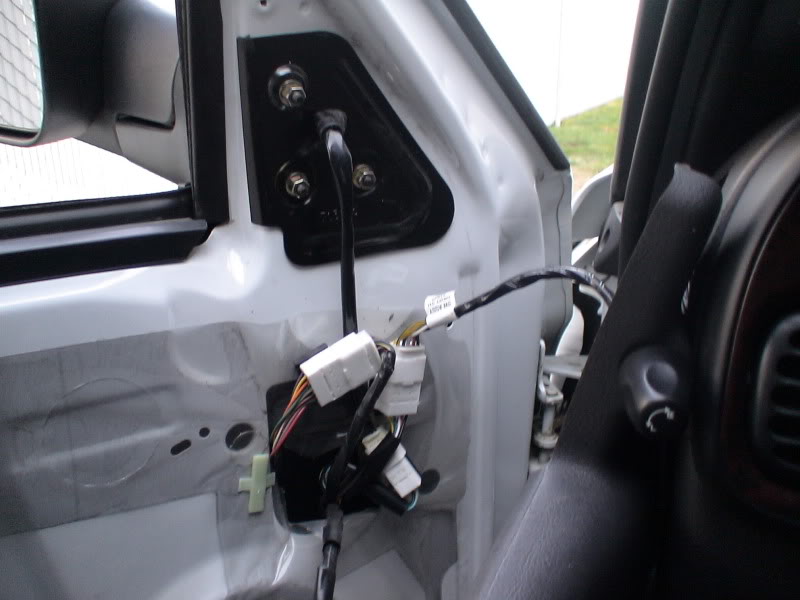

Feed the wiring harness through the mounting plate and install and tighten the three 10mm mounting nuts fastening the mirror in place. Plug in the wire harness and test the mirror before installing the door panel back onto the door.



Step Seven
If the test is good, install the door panel and do the same for the passenger side!

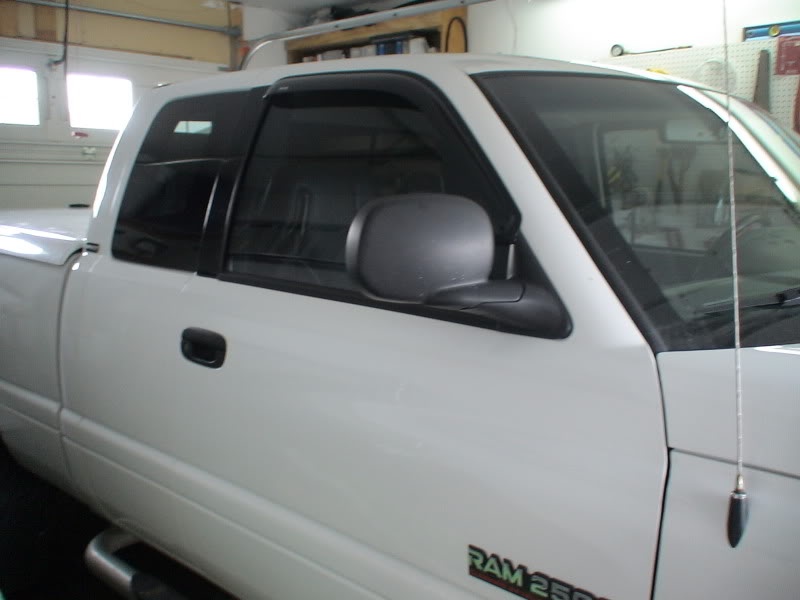

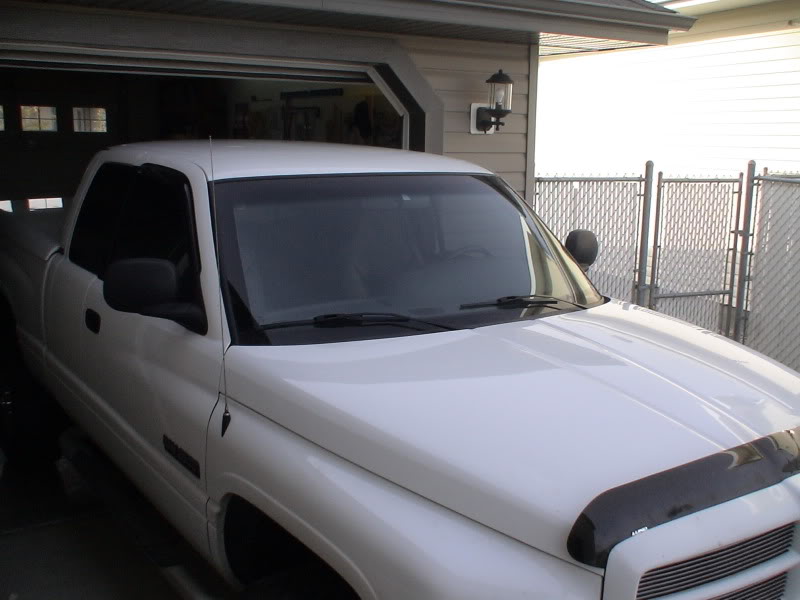

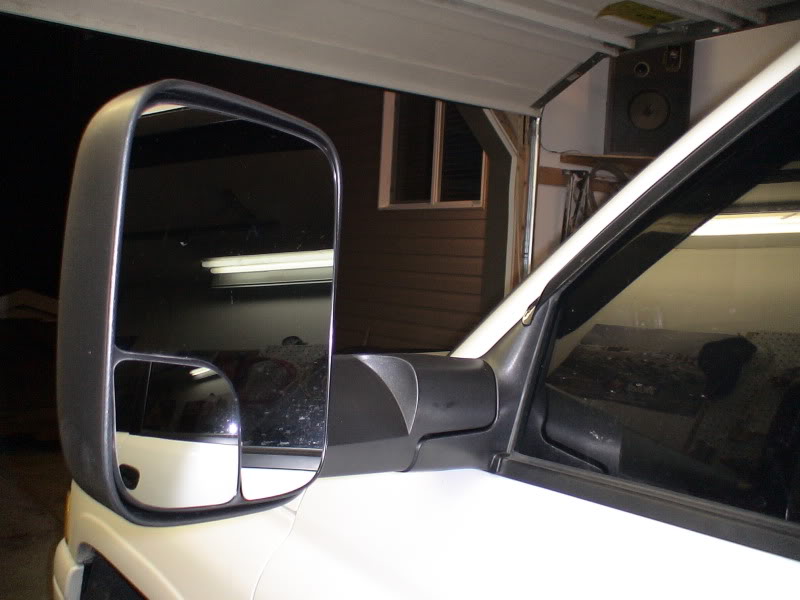

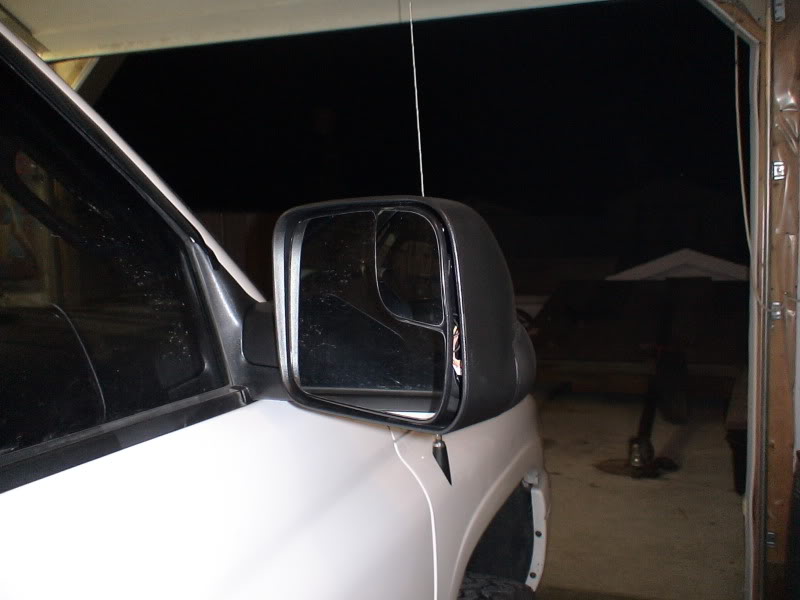

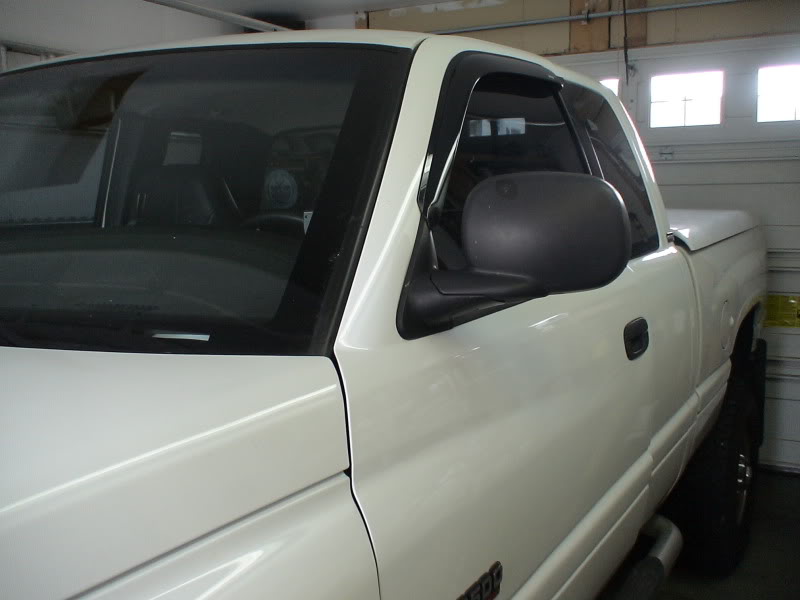

Before

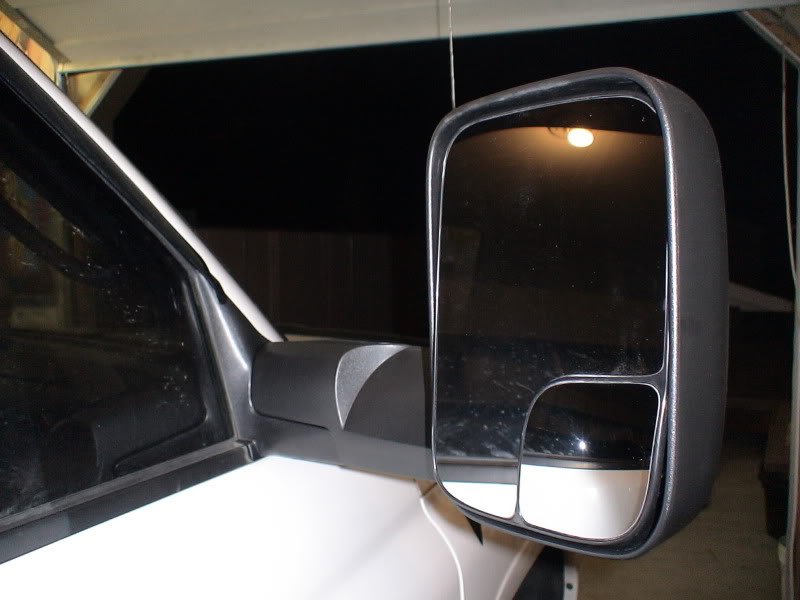

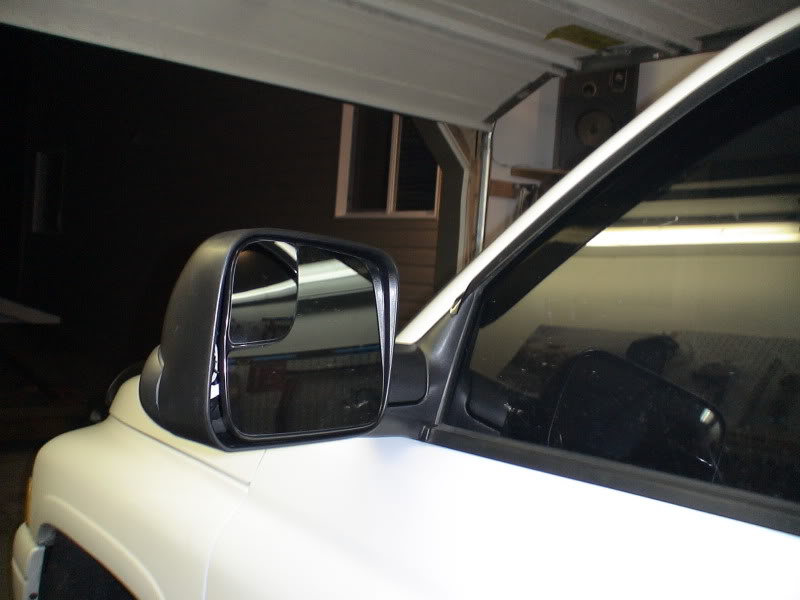

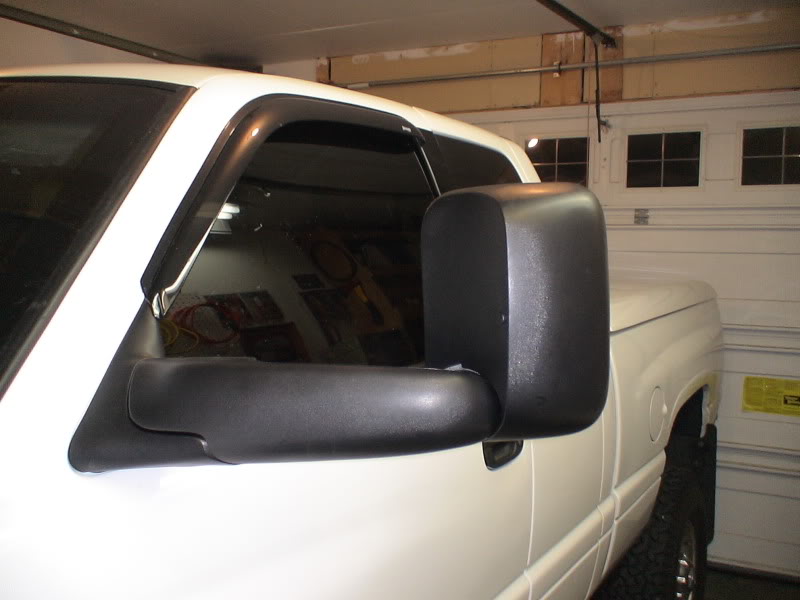

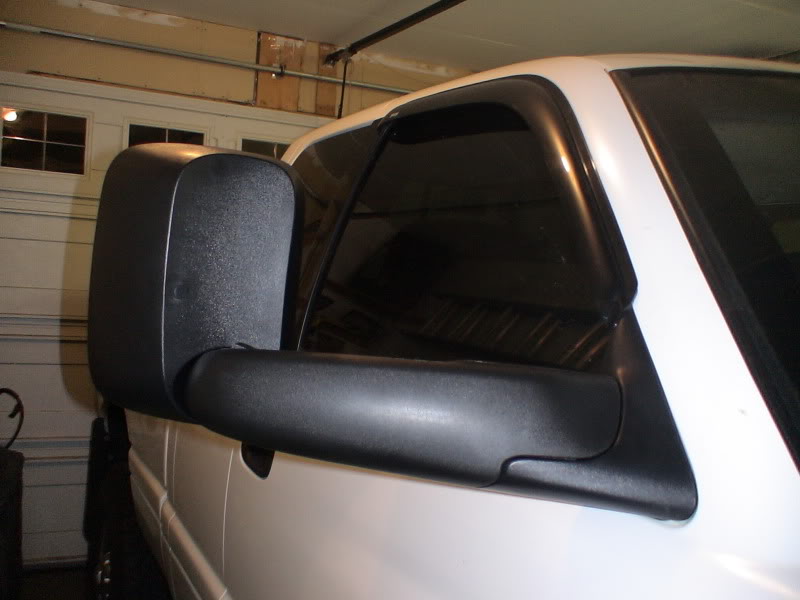

After
