Junkyard hub conversion
Hi every buddy i recently did a hub swap on my 95 that was very affordable and so far is working very well so i figured I’d share the info.
So basically i used ford Dana 50 ttb parts to replace my unit Barings, as i was afraid they would leave me stranded on day and they are very costly to replace.

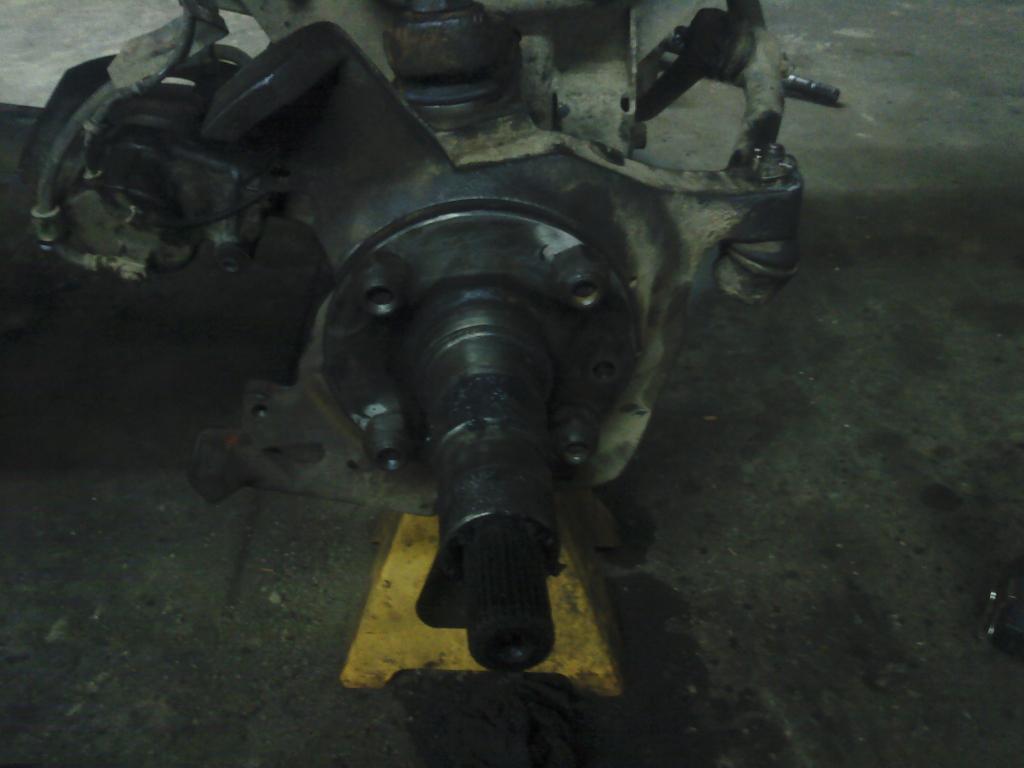

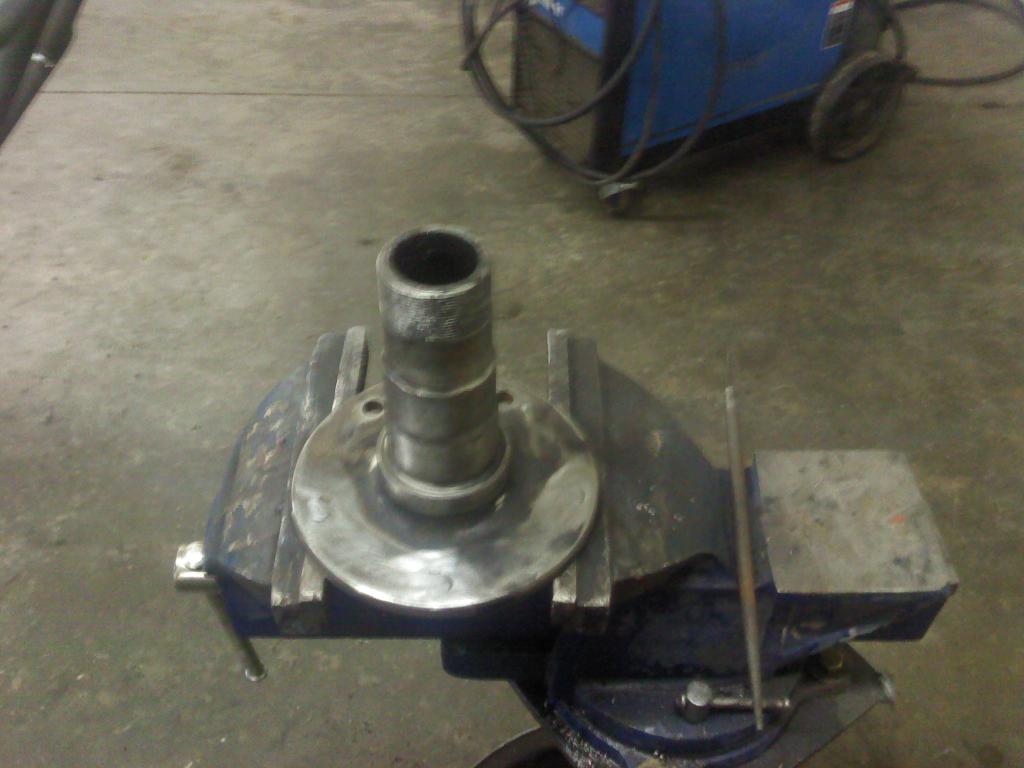

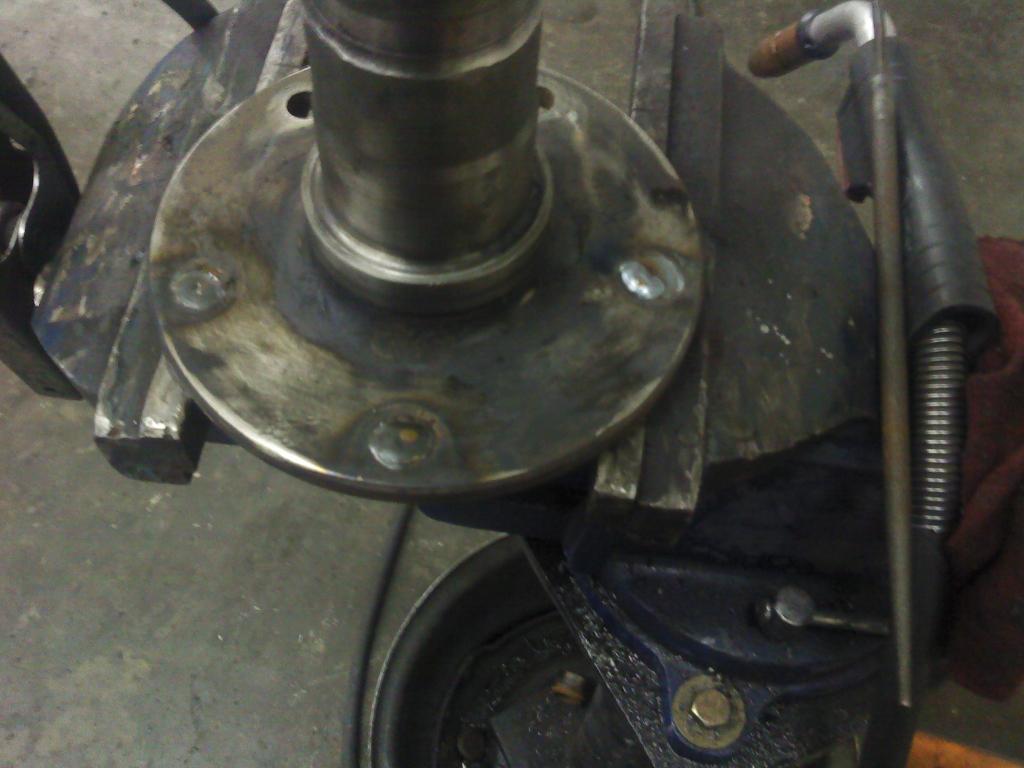

As you can see in the pictures i started out with the factory ford spindles. Then i plug welded 3 of the holes, and then ground it with a flap disc so i was basically starting with a clean slate. Then i re drilled the spindle to Mach the factory dodge knuckles 4 bolt pattern. The ford spindles are a perfect press fit into the dodge knuckle. For a stub shaft i used a factory Chevy or dodge 30 spline stubs. You CANNOT use the ttb stub shafts as they use a different u joint.
For the brakes i used rooters from a 78-79 ford f 350 with a Dana 60, after some messing around i figured out those were the ones that enabled my dodge calipers to line up. After attaching my new stub shafts to the factory inners, changing the rooters, and making the spindles i was able to bolt it all together just like it was mean to be
So the end result left me with locking hubs, which are always nice seeing they save your u-joints and help your fuel economy slightly. And good cone wheel bearings which if you keep greased will basically last forever.
Now for the cost; I got the ttb parts from a buddy who did a solid axle swap for free (those parts are everywhere) they have to be from the big hub Dana 60 style ttb. You CANNOT use the dana 44 style. and then the set of rooters from kragen for like 70 bucks. New pads were like 50. I also did all new wheel bearings and races which wound up being like another 100 bucks. I also did new u-joints sense I was in there and they we around 80. So all together I spent around 300 dollars on the conversion.
So basically i used ford Dana 50 ttb parts to replace my unit Barings, as i was afraid they would leave me stranded on day and they are very costly to replace.
As you can see in the pictures i started out with the factory ford spindles. Then i plug welded 3 of the holes, and then ground it with a flap disc so i was basically starting with a clean slate. Then i re drilled the spindle to Mach the factory dodge knuckles 4 bolt pattern. The ford spindles are a perfect press fit into the dodge knuckle. For a stub shaft i used a factory Chevy or dodge 30 spline stubs. You CANNOT use the ttb stub shafts as they use a different u joint.
For the brakes i used rooters from a 78-79 ford f 350 with a Dana 60, after some messing around i figured out those were the ones that enabled my dodge calipers to line up. After attaching my new stub shafts to the factory inners, changing the rooters, and making the spindles i was able to bolt it all together just like it was mean to be
So the end result left me with locking hubs, which are always nice seeing they save your u-joints and help your fuel economy slightly. And good cone wheel bearings which if you keep greased will basically last forever.
Now for the cost; I got the ttb parts from a buddy who did a solid axle swap for free (those parts are everywhere) they have to be from the big hub Dana 60 style ttb. You CANNOT use the dana 44 style. and then the set of rooters from kragen for like 70 bucks. New pads were like 50. I also did all new wheel bearings and races which wound up being like another 100 bucks. I also did new u-joints sense I was in there and they we around 80. So all together I spent around 300 dollars on the conversion.
